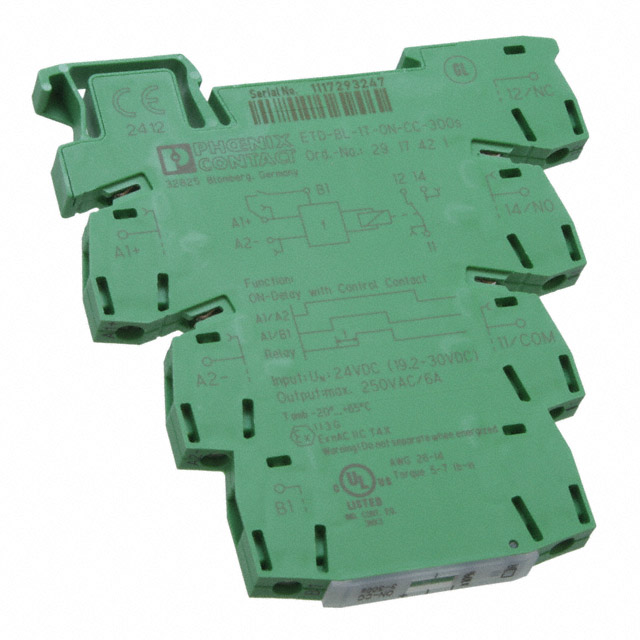

2917421

Manufacturer :

Phoenix Contact

Product Category :

Time Delay Relays

Delay Time :

3 Sec ~ 300 Sec

Timing Initiate Method :

Input Voltage

Coil Voltage (DC) :

24V

Termination Style :

Screw Terminal

Termination :

Screw

Contact Rating @ Voltage :

6A @ 250VAC

Packaging :

Bulk

Switching Capacity :

1.125 kW

Timing Adjustment Method :

Screwdriver Slot

Min Operating Temperature :

-20°C

Relay Type :

Mechanical Relay

Lead Free :

Lead Free

Package / Case :

300

Weight :

60.000008g

Series :

ETD-BL-1T

Voltage - Supply :

24VDC

Length :

80mm

Voltage - Rated DC :

30V

Height :

86mm

Number of Contacts :

1

Max Current Rating :

6.3A

Depth :

86mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

DIN Rail

Width :

6.2mm

Operating Supply Voltage :

30V

RoHS Status :

RoHS Compliant

Max Operating Temperature :

65°C

Circuit :

SPDT (1 Form C)

Throw Configuration :

SPDT

Ratings :

IP20

Factory Lead Time :

4 Weeks

Published :

2009

Function :

On-Delay

Mount :

DIN Rail

Current Rating :

6.3A
