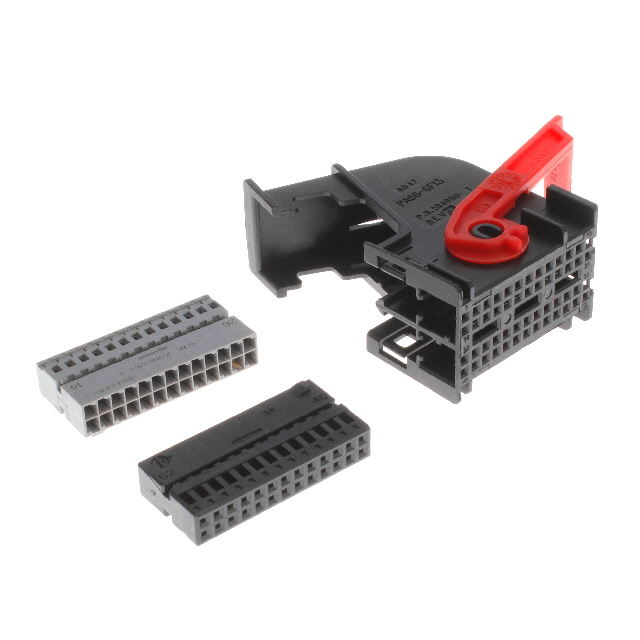

284972-1
Or copy the link below:
- Mfr.Part #
- 284972-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG 52POS 2.54MM
- Stock
- 309
- In Stock ：
- 309
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Housings
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Type :
- Receptacle
- Depth :
- 54mm
- Number of Positions :
- 52
- Contact Termination :
- Crimp
- Row Spacing :
- 2.9972 mm
- Fastening Type :
- Lever Lock
- Color :
- Black
- Packaging :
- Bulk
- Number of Rows :
- 4
- Gender :
- FEMALE
- Note :
- Contacts Not Included
- Serviceable :
- yes
- Hybrid Connector :
- No
- Series :
- Micro Quadlok
- Mating Tab Width :
- 635μm
- Width :
- 23.495mm
- Housing Material :
- Polybutylene
- Min Operating Temperature :
- -25°C
- Orientation :
- Straight
- Circuit Application :
- Signal
- Max Operating Temperature :
- 85°C
- Length :
- 34.8996mm
- Pitch :
- 0.100 2.54mm
- Factory Lead Time :
- 14 Weeks
- Mounting Type :
- Free Hanging (In-Line)
- Height :
- 54mm
- Contact Type :
- Female Socket
- ELV :
- Compliant
- RoHS Status :
- RoHS Compliant
- Body Material :
- PBT
- Published :
- 2011
- Datasheets
- 284972-1
4 Rows Receptacle Bulk Black 52 Positions Free Hanging (In-Line) Female Socket Crimp Micro Quadlok Polybutylene
284972-1 Overview
The product comes in a package of Receptacle.Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Micro Quadlok Series.
284972-1 Features
Micro Quadlok series
284972-1 Applications
There are a lot of TE Connectivity AMP Connectors
284972-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
