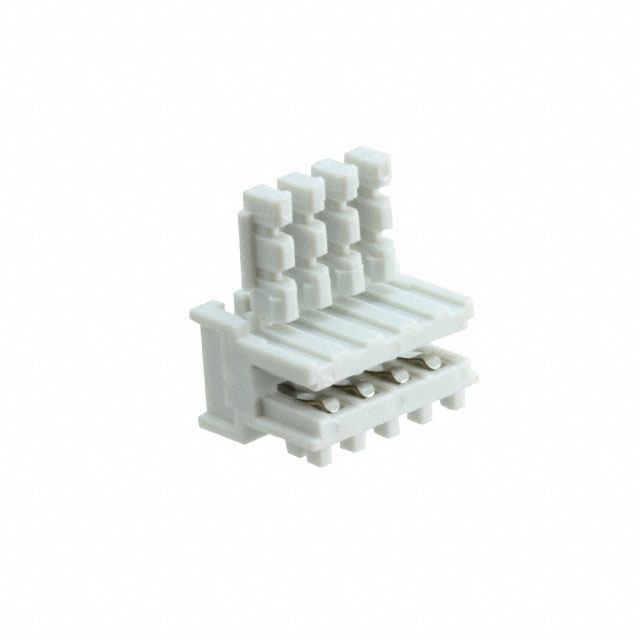

284930-4
Or copy the link below:
- Mfr.Part #
- 284930-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 4POS IDC 22-24AWG TIN
- Stock
- 2,991
- In Stock ：
- 2,991
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- PCB Mounting Orientation :
- RIGHT ANGLE
- Mounting Type :
- Free Hanging (In-Line)
- ELV :
- Compliant
- Insulation Diameter :
- 1.2954 mm
- Number of Positions :
- 4
- Reach Compliance Code :
- Unknown
- Cable Termination :
- IDC
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Contact Current Rating :
- 2A
- Contact Type :
- Female Blade Socket
- Housing Material :
- PBT
- Height :
- 7.35mm
- Min Operating Temperature :
- -40°C
- Factory Lead Time :
- 6 Weeks
- Operating Supply Voltage :
- 63V
- Max Operating Temperature :
- 110°C
- Series :
- DuoPlug
- Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Gauge :
- 22-24 AWG
- Preloaded :
- yes
- PCB Thickness :
- 1.4986mm
- Contact Finish :
- Tin
- Wire/Cable Diameter :
- 1.27 mm
- Wire Type :
- Discrete
- Circuit Application :
- Signal
- Packaging :
- Bag
- Pitch :
- 0.098 2.50mm
- Feature :
- Mates to PCB
- Plating Thickness :
- 10μm
- Number of Rows :
- 1
- Current Rating :
- 2A
- Contact Material :
- Bronze
- Orientation :
- RIGHT ANGLE
- RoHS Status :
- RoHS Compliant
- Published :
- 2010
- Connector Type :
- Receptacle
- Datasheets
- 284930-4
284930-4 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
