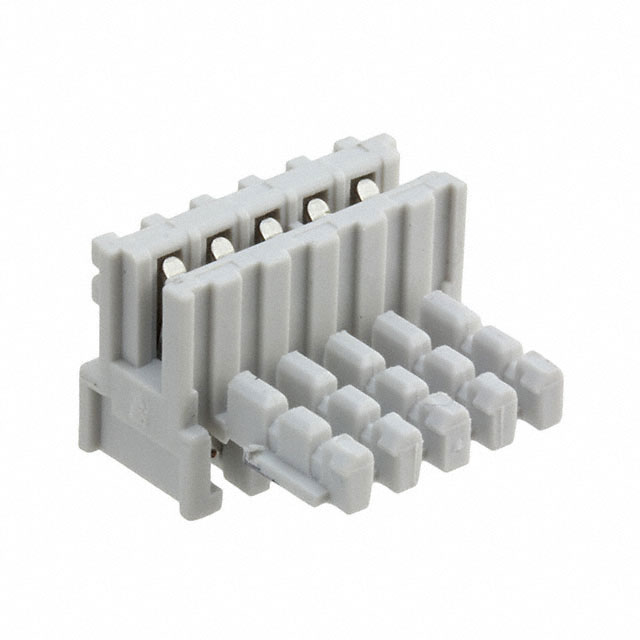

284932-5
Or copy the link below:
- Mfr.Part #
- 284932-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 5POS IDC 22-24AWG TIN
- Stock
- 9,319
- In Stock ：
- 9,319
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Insulation Diameter :
- 1.2954 mm
- Packaging :
- Bulk
- Orientation :
- RIGHT ANGLE
- Wire Gauge :
- 22-24 AWG
- Series :
- DuoPlug
- PCB Thickness :
- 1.4986mm
- Contact Current Rating :
- 2A
- Wire/Cable Diameter :
- 1.27 mm
- Contact Material :
- Bronze
- Pitch :
- 0.098 2.50mm
- ELV :
- Compliant
- Contact Type :
- Female Blade Socket
- Factory Lead Time :
- 16 Weeks
- Plating Thickness :
- 10μm
- Housing Material :
- PBT
- Number of Rows :
- 1
- RoHS Status :
- RoHS Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Mounting Type :
- Free Hanging (In-Line)
- Contact Finish :
- Tin
- Cable Termination :
- IDC
- Number of Positions :
- 5
- Operating Supply Voltage :
- 63V
- Published :
- 2009
- Max Operating Temperature :
- 110°C
- Current Rating :
- 2A
- Feature :
- Mates to PCB
- Connector Type :
- Receptacle
- Preloaded :
- yes
- Height :
- 7.35mm
- Circuit Application :
- Signal
- PCB Mounting Orientation :
- RIGHT ANGLE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Flammability Rating :
- UL94 V-0
- Min Operating Temperature :
- -40°C
- Color :
- Black
- Datasheets
- 284932-5
284932-5 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
