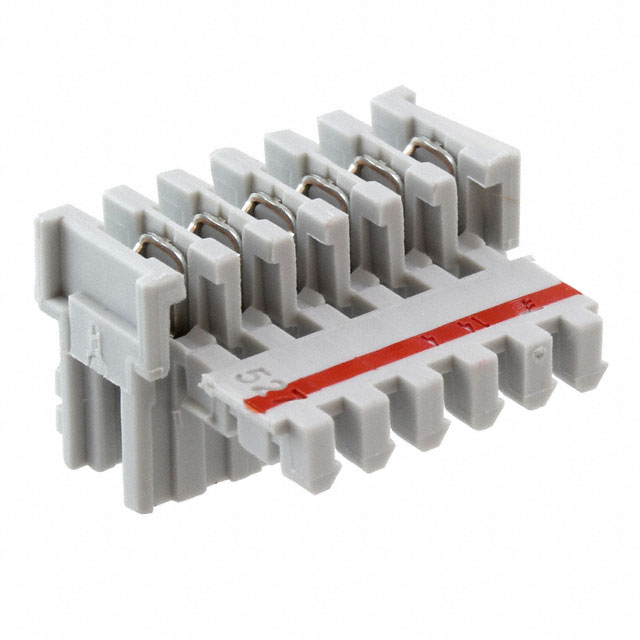

284932-6
Or copy the link below:
- Mfr.Part #
- 284932-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 6POS IDC 22-24AWG TIN
- Stock
- 1,298
- In Stock ：
- 1,298
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Package :
- Bulk
- Current Rating :
- 2A
- Circuit Application :
- Signal
- Orientation :
- RIGHT ANGLE
- Connector Type :
- Connector, Receptacle, Socket
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Max Operating Temperature :
- 110°C
- Features :
- Mates to PCB
- Contact Finish - Mating :
- NOT SPECIFIED
- Cable Termination :
- IDC
- Operating Supply Voltage :
- 63V
- Packaging :
- Bulk
- Row Spacing :
- --
- Number of Positions :
- 6
- Contact Plating :
- Tin
- Base Product Number :
- 284932
- Contact Rating (Current) :
- 2A
- Color :
- Red
- PCB Mounting Orientation :
- RIGHT ANGLE
- Housing Material :
- PBT
- Length :
- 17.4mm
- Plating Thickness :
- 10μm
- Height :
- 7.35mm
- Wire Gauge :
- 22-24 AWG
- Contact Finish Thickness :
- --
- Number of Rows :
- 1
- Contact Type :
- Female Blade Socket
- Insulation Diameter :
- 1.2954 mm
- Pitch :
- 2.5mm
- Series :
- DuoPlug
- Termination :
- IDC
- Fastening Type :
- --
- Gender :
- FEMALE
- Wire/Cable Diameter :
- 1.27 mm
- Mounting Type :
- Free Hanging (In-Line)
- Product Status :
- Active
- Wire Type :
- --
- Min Operating Temperature :
- -40°C
- Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- ELV :
- Compliant
- Preloaded :
- yes
- Contact Finish :
- Tin
- PCB Thickness :
- 1.4986mm
- Contact Material :
- Bronze
- Datasheets
- 284932-6
