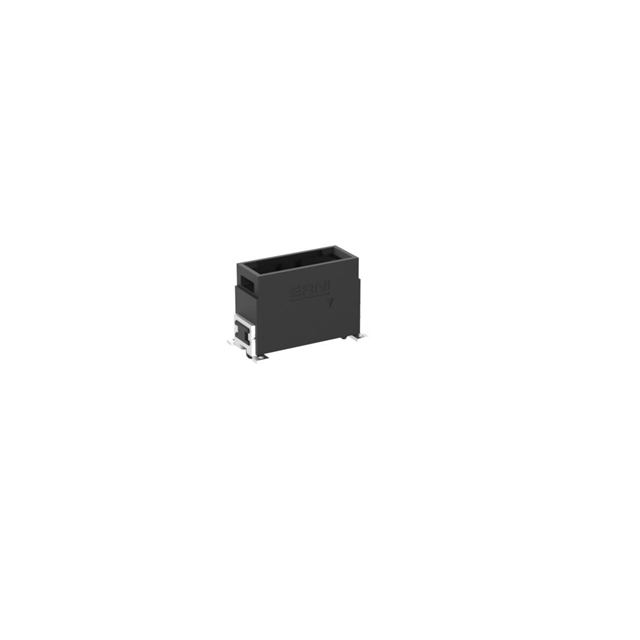

284656
Or copy the link below:
- Mfr.Part #
- 284656
- Manufacturer
- TE Connectivity
- Package / Case
- Datasheet
- Download
- Description
- MAXIBR M 02POS VERT P SMT BK
- Stock
- 13,940
- In Stock ：
- 13,940
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity
- Product Category :
- Headers, Male Pins
- Contact Plating :
- Gold Over Nickel
- Product Length (mm) :
- 14.08(mm)
- DIN Conformance :
- No
- MIL Conformance :
- No
- Number of Contacts :
- 3(POS)
- Product Height (mm) :
- 9.9(mm)
- Connector Type :
- COMBINATION LINE CONNECTOR
- Body Orientation :
- Straight
- Pbfree Code :
- yes
- Reach Compliance Code :
- Compliant
- Option :
- GENERAL PURPOSE
- Mixed Contacts :
- No
- Empty Shell :
- No
- Termination Type :
- Surface Mount
- Contact Resistance Max :
- 20(mohm)
- Product Depth (mm) :
- 7.2(mm)
- Mounting Style :
- Surface Mount
- Termination Method :
- Solder
- Body Breadth :
- 0.283 inch
- IEC Conformance :
- No
- Pitch (mm) :
- 2.54(mm)
- Number of Contact Rows :
- 1
- Housing Color :
- Black
- Contact Finish Termination :
- TIN (236)
- Gender :
- M
- Mounting Type :
- BOARD
- Type :
- Shrouded Header
- JESD-609 Code :
- e3
- Filter Feature :
- No
- Packaging :
- Tape and Reel
- Contact Material :
- COPPER ALLOY
- Total Number of Contacts :
- 3
- Manufacturer :
- ERNI
- Contact Gender :
- Male
- Datasheets
- 284656
284656 Documents
284656 datasheet pdf and Connectors, Interconnects product details from ERNI Electronics stock available at Xinshop
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
