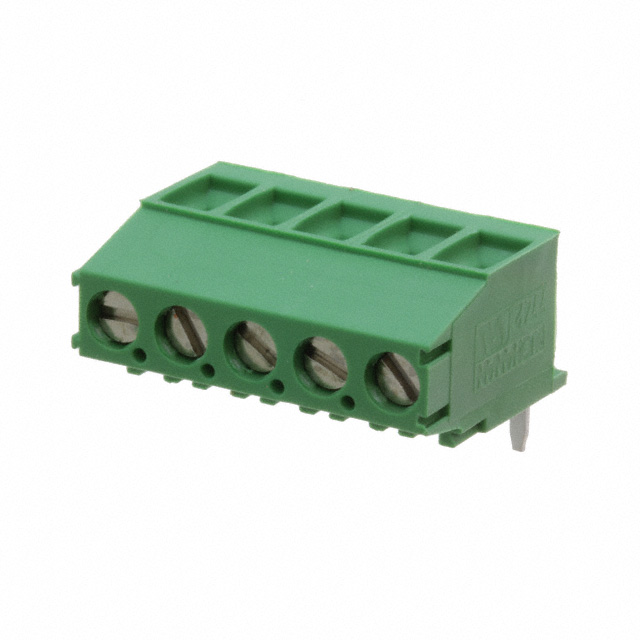

284415-5
Or copy the link below:
- Mfr.Part #
- 284415-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 5POS TOP ENT 3.81MM PCB
- Stock
- 434
- In Stock ：
- 434
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Series :
- Buchanan
- Feature :
- Interlocking (Side)
- Clamp Material - Plating :
- Brass - Nickel Plated
- Mounting Type :
- Through Hole
- Published :
- 2007
- Number of Ways :
- 5
- Wire Gauge (Max) :
- 30 AWG
- Contact Material :
- Brass
- Orientation :
- RIGHT ANGLE
- Pitch :
- 0.150 3.81mm
- Torque - Screw :
- 0.25 Nm (2.2 Lb-In)
- Number of Rows :
- 1
- Contact Material - Plating :
- Brass - Tin Plated
- ELV :
- Compliant
- Radiation Hardening :
- No
- Voltage - Rated :
- 300V
- Connector Type :
- Receptacle
- ECCN Code :
- EAR99
- Flammability Rating :
- UL94 V-0
- Wire Gauge :
- 12-30 AWG
- Mount :
- Through Hole
- Number of Positions Per Level :
- 5
- Max Current Rating :
- 12A
- Termination :
- Screw
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Factory Lead Time :
- 12 Weeks
- Number of Decks :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Levels :
- 1
- Safety Approval :
- UL
- Screw Thread :
- M3
- Length - Tail :
- 3.5mm
- RoHS Status :
- RoHS Compliant
- Mating Orientation :
- Vertical with Board
- Additional Feature :
- PA66, 94V-0
- Contact Plating :
- Tin
- Wire Gauge (Min) :
- 12 AWG
- Screw Material - Plating :
- Brass - Nickel Plated
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Packaging :
- Tray
- Wire Termination :
- Screw - Rising Cage Clamp
- Color :
- Green
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Datasheets
- 284415-5
0.150 3.81mm Green Tray Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
284415-5 Overview
Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the Buchanan Series.Other features include PA66, 94V-0, to name just a few.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.
284415-5 Features
Buchanan series
284415-5 Applications
There are a lot of TE Connectivity AMP Connectors
284415-5 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
