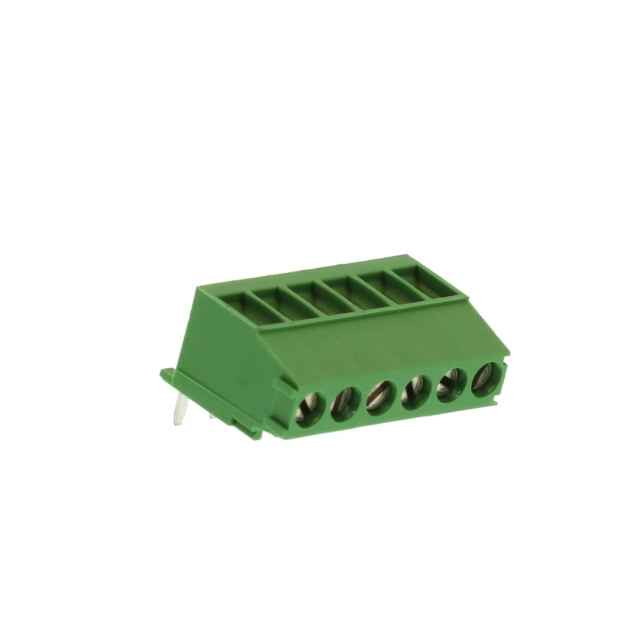

284414-6
Or copy the link below:
- Mfr.Part #
- 284414-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 6P TOP ENTRY 3.5MM PCB
- Stock
- 787
- In Stock ：
- 787
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Wire Gauge :
- 12-30 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- Interlocking (Side)
- Published :
- 2002
- ELV :
- Compliant
- Packaging :
- Tray
- Contact Material - Plating :
- Brass - Tin Plated
- Clamp Material - Plating :
- Brass - Nickel Plated
- Voltage - Rated :
- 300V
- Max Current Rating :
- 12A
- Radiation Hardening :
- No
- Termination :
- Solder
- Series :
- Buchanan
- Shrouding :
- yes
- Max Voltage Rating (AC) :
- 300V
- Number of Rows :
- 1
- Min Operating Temperature :
- -40°C
- Length :
- 21mm
- Pitch :
- 0.138 3.50mm
- Mounting Type :
- Through Hole
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Max Operating Temperature :
- 105°C
- ECCN Code :
- EAR99
- Wire Termination :
- Screw - Rising Cage Clamp
- Thread Size :
- M2
- Contact Plating :
- Tin
- Flammability Rating :
- UL94 V-0
- Mating Orientation :
- Vertical with Board
- Number of Decks :
- 1
- Torque - Screw :
- 0.25 Nm (2.2 Lb-In)
- Wire Gauge (Min) :
- 30 AWG
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Max Supply Voltage (AC) :
- 300V
- Number of Levels :
- 1
- Color :
- Green
- Mount :
- Through Hole
- Factory Lead Time :
- 12 Weeks
- Screw Thread :
- M3
- RoHS Status :
- RoHS Compliant
- Safety Approval :
- UL
- Screw Material - Plating :
- Brass - Nickel Plated
- Length - Tail :
- 3.5mm
- Orientation :
- RIGHT ANGLE
- Wire Gauge (Max) :
- 30 AWG
- Number of Ways :
- 6
- Contact Material :
- Brass
- Number of Contacts :
- 6
- Connector Type :
- Receptacle
- Current Rating :
- 12A
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Datasheets
- 284414-6
0.138 3.50mm Green Tray Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
284414-6 Overview
Packaging is Receptacle.Through Hole is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the Buchanan Series, it can be found in this category.Temperatures below 105°C are best for using it.There's a minimum temperature of -40°C for this device.With its Interlocking (Side) feature, it is more powerful in many ways.In this case, Through Hole mounts the part.
284414-6 Features
Buchanan series
284414-6 Applications
There are a lot of TE Connectivity AMP Connectors
284414-6 Terminal Blocks applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
