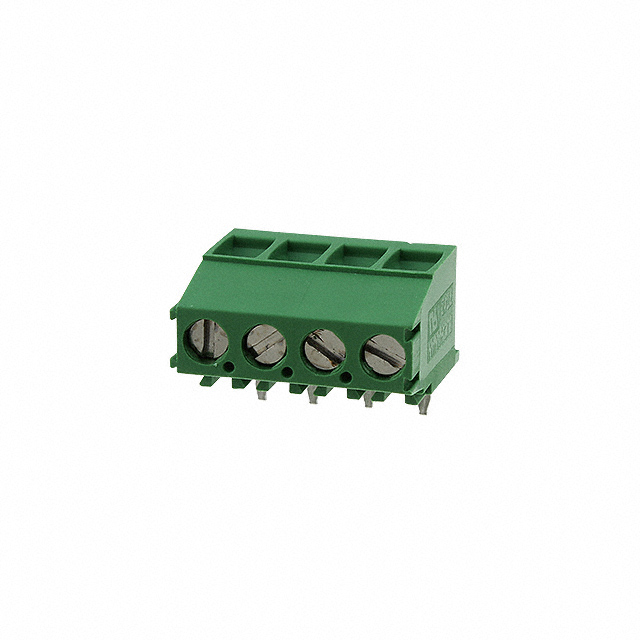

284415-4
Or copy the link below:
- Mfr.Part #
- 284415-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 4POS TOP ENT 3.81MM PCB
- Stock
- 466
- In Stock ：
- 466
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Series :
- Buchanan
- Contact Material :
- Brass
- Packaging :
- Tray
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Color :
- Green
- Factory Lead Time :
- 12 Weeks
- Wire Gauge (Max) :
- 30 AWG
- Contact Plating :
- Tin
- ELV :
- Compliant
- Number of Levels :
- 1
- Termination :
- Screw
- Published :
- 2007
- Feature :
- Interlocking (Side)
- Orientation :
- RIGHT ANGLE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Mating Orientation :
- Vertical with Board
- Safety Approval :
- UL
- RoHS Status :
- RoHS Compliant
- Number of Decks :
- 1
- Wire Gauge (Min) :
- 12 AWG
- Number of Contacts :
- 4
- Wire Termination :
- Screw - Rising Cage Clamp
- Mount :
- Through Hole
- Current Rating :
- 12A
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Screw Material - Plating :
- Brass - Nickel Plated
- Voltage - Rated :
- 300V
- Screw Thread :
- M3
- Contact Material - Plating :
- Brass - Tin Plated
- Connector Type :
- Receptacle
- Length - Tail :
- 3.5mm
- Pitch :
- 0.150 3.81mm
- Number of Rows :
- 1
- Wire Gauge :
- 12-30 AWG
- Number of Ways :
- 4
- Torque - Screw :
- 0.25 Nm (2.2 Lb-In)
- Mounting Type :
- Through Hole
- Clamp Material - Plating :
- Brass - Nickel Plated
- Radiation Hardening :
- No
- Max Current Rating :
- 12A
- ECCN Code :
- EAR99
- Flammability Rating :
- UL94 V-0
- Datasheets
- 284415-4
0.150 3.81mm Green Tray Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
284415-4 Overview
Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the Buchanan Series.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.
284415-4 Features
Buchanan series
284415-4 Applications
There are a lot of TE Connectivity AMP Connectors
284415-4 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
