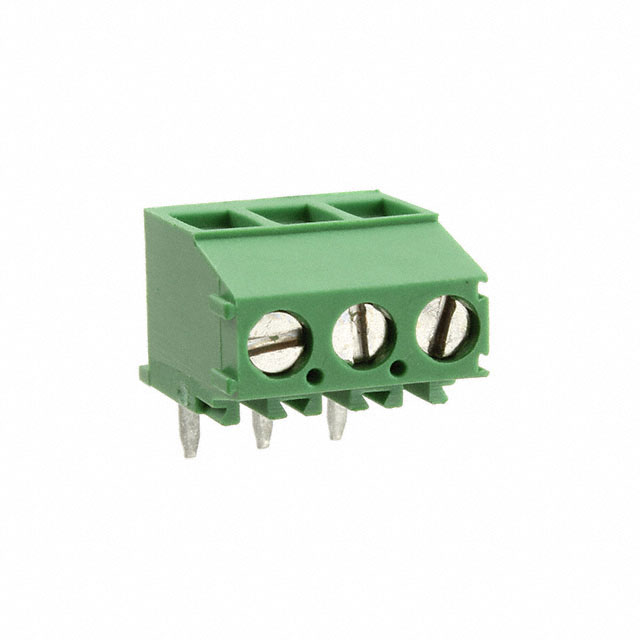

284415-3
Or copy the link below:
- Mfr.Part #
- 284415-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 3POS TOP ENT 3.81MM PCB
- Stock
- 622
- In Stock ：
- 622
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Flammability Rating :
- UL94 V-0
- Pitch :
- 0.150 3.81mm
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Mounting Type :
- Through Hole
- Contact Material - Plating :
- Brass - Tin Plated
- ECCN Code :
- EAR99
- Wire Gauge :
- 12-30 AWG
- Wire Gauge (Min) :
- 12 AWG
- Number of Decks :
- 1
- Contact Plating :
- Tin
- Packaging :
- Tray
- Clamp Material - Plating :
- Brass - Nickel Plated
- Torque - Screw :
- 0.25 Nm (2.2 Lb-In)
- Color :
- Green
- Length - Tail :
- 3.5mm
- Published :
- 2007
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Through Hole
- Number of Rows :
- 1
- Voltage - Rated :
- 300V
- Screw Material - Plating :
- Brass - Nickel Plated
- Radiation Hardening :
- No
- Termination :
- Screw
- Safety Approval :
- UL
- Mating Orientation :
- Vertical with Board
- Connector Type :
- Receptacle
- Additional Feature :
- PA66, 94V-0
- Wire Termination :
- Screw - Rising Cage Clamp
- Feature :
- Interlocking (Side)
- Contact Material :
- Brass
- Number of Contacts :
- 3
- Wire Gauge (Max) :
- 30 AWG
- Orientation :
- RIGHT ANGLE
- Number of Ways :
- 3
- Series :
- Buchanan
- ELV :
- Compliant
- Factory Lead Time :
- 12 Weeks
- Screw Thread :
- M3
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Max Current Rating :
- 12A
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Current Rating :
- 12A
- Number of Levels :
- 1
- Datasheets
- 284415-3
0.150 3.81mm Green Tray Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
284415-3 Overview
Packaging for this item is Receptacle.There is a mounting type of Through Hole for this device.It is necessary to use a Tray case for packaging the product.This product is part of the Buchanan Series.Moreover, there are a number of other features, including PA66, 94V-0, to name just a few.In many ways, its Interlocking (Side) feature makes it more powerful.Through Hole is used to mount the part.
284415-3 Features
Buchanan series
284415-3 Applications
There are a lot of TE Connectivity AMP Connectors
284415-3 Terminal Blocks applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
