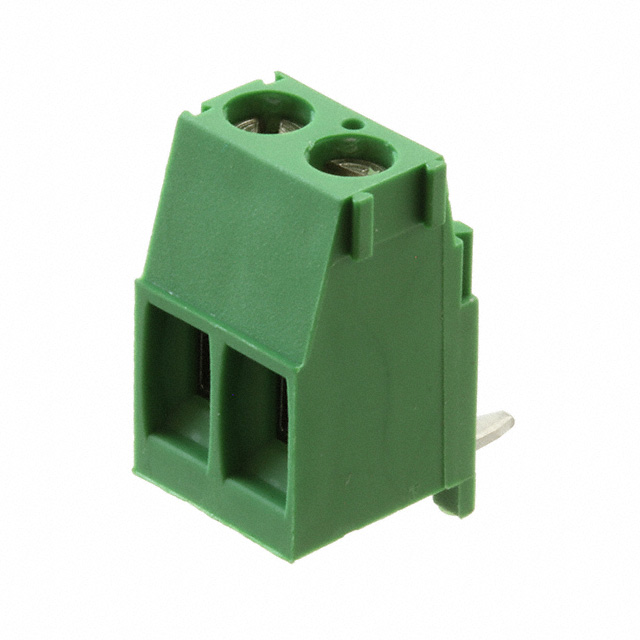

284415-2
Or copy the link below:
- Mfr.Part #
- 284415-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 2POS TOP ENT 3.81MM PCB
- Stock
- 949
- In Stock ：
- 949
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Color :
- Green
- Published :
- 2007
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Mount :
- Through Hole
- Mounting Type :
- Through Hole
- Orientation :
- RIGHT ANGLE
- Clamp Material - Plating :
- Brass - Nickel Plated
- Screw Material - Plating :
- Brass - Nickel Plated
- Termination :
- Screw
- Contact Plating :
- Tin
- ECCN Code :
- EAR99
- Factory Lead Time :
- 12 Weeks
- Wire Termination :
- Screw - Rising Cage Clamp
- Radiation Hardening :
- No
- Current Rating :
- 12A
- Safety Approval :
- UL
- Number of Contacts :
- 2
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Flammability Rating :
- UL94 V-0
- Wire Gauge :
- 12-30 AWG
- Wire Gauge (Min) :
- 12 AWG
- ELV :
- Compliant
- Torque - Screw :
- 0.25 Nm (2.2 Lb-In)
- Feature :
- Interlocking (Side)
- Pitch :
- 0.150 3.81mm
- Series :
- Buchanan
- Mating Orientation :
- Vertical with Board
- Contact Material - Plating :
- Brass - Tin Plated
- Screw Thread :
- M3
- Connector Type :
- Receptacle
- Wire Gauge (Max) :
- 30 AWG
- Number of Rows :
- 1
- Number of Levels :
- 1
- Voltage - Rated :
- 300V
- RoHS Status :
- RoHS Compliant
- Packaging :
- Tray
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Max Current Rating :
- 12A
- Number of Ways :
- 2
- Number of Decks :
- 1
- HTS Code :
- 8536.69.40.40
- Additional Feature :
- PA66, 94V-0
- Length - Tail :
- 3.5mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- Brass
- Datasheets
- 284415-2
0.150 3.81mm Green Tray Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
284415-2 Overview
The product comes in a package of Receptacle.Through Hole is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the Buchanan Series.Among other features are PA66, 94V-0, to name only a few.It is more powerful in many ways due to its Interlocking (Side) feature.It is mounted by Through Hole.
284415-2 Features
Buchanan series
284415-2 Applications
There are a lot of TE Connectivity AMP Connectors
284415-2 Terminal Blocks applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
