2842155-4
Or copy the link below:
- Mfr.Part #
- 2842155-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 8P,2MM,BRK HDR,DRRT,2.8,0.38AU,T
- Stock
- 20
- In Stock ：
- 20
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Finish - Post :
- Tin
- Material Flammability Rating :
- UL94 V-0
- Current Rating (Amps) :
- 2A
- Contact Length - Post :
- 0.110 2.79mm
- Fastening Type :
- Push-Pull
- Mounting Type :
- Through Hole, Right Angle
- Number of Positions Loaded :
- All
- Contact Length - Mating :
- 0.157 4.00mm
- Contact Shape :
- Square
- Contact Finish - Mating :
- Gold
- Insulation Height :
- 0.059 1.50mm
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Termination :
- Solder
- Style :
- Board to Board
- Insulation Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- Pick and Place
- Insulation Material :
- Thermoplastic
- Series :
- AMPMODU
- Factory Lead Time :
- 12 Weeks
- Connector Type :
- Header, Breakaway
- Voltage - Rated :
- 125VAC/DC
- Pitch - Mating :
- 0.079 2.00mm
- Number of Rows :
- 2
- Packaging :
- Bulk
- Contact Material :
- COPPER ALLOY
- Operating Temperature :
- -40°C~125°C
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Shrouding :
- Unshrouded
- Number of Positions :
- 8
- Contact Type :
- Male Pin
- Datasheets
- 2842155-4

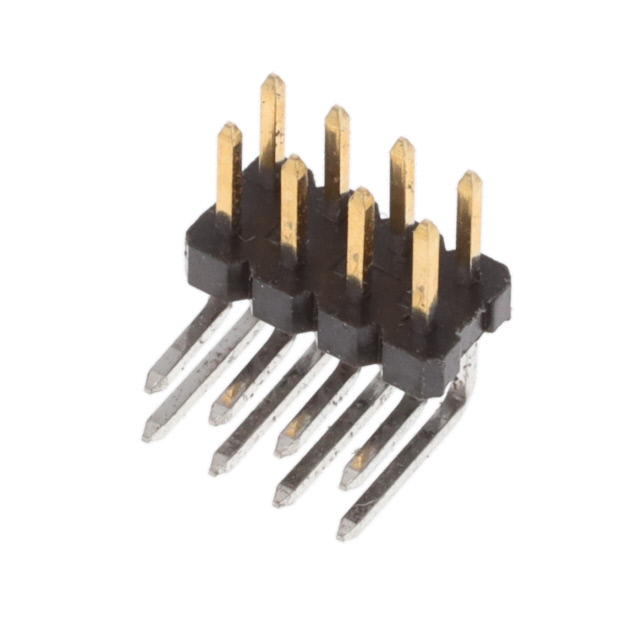

AMPMODU Series 2-Row Header, Breakaway Solder Copper Alloy Bulk Through Hole, Right Angle Gold Thermoplastic 8-Position Board to Board 0.059 1.50mm Height
2842155-4 Overview
A Header, Breakaway package is included with it.Its mounting type is Through Hole, Right Angle.Packaging is performed using a Bulk case.It is part of the AMPMODU Series of products.A number of features make it more powerful because of its Pick and Place feature.There is no operating temperature for the device.
2842155-4 Features
AMPMODU series
2842155-4 Applications
There are a lot of TE Connectivity AMP Connectors
2842155-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
