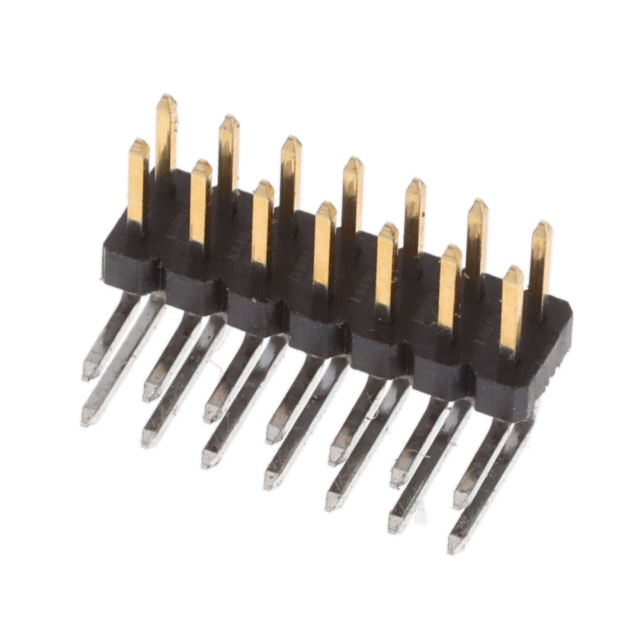

2842154-7
Or copy the link below:
- Mfr.Part #
- 2842154-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 14P,2MM,BRK HDR,DRRT,2.8,0.1AU,T
- Stock
- 5,149
- In Stock ：
- 5,149
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Feature :
- Pick and Place
- Contact Type :
- Male Pin
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Insulation Height :
- 0.059 1.50mm
- Fastening Type :
- Push-Pull
- Contact Shape :
- Square
- Contact Material :
- COPPER ALLOY
- Number of Positions Loaded :
- All
- Number of Rows :
- 2
- Series :
- AMPMODU
- Contact Length - Post :
- 0.110 2.79mm
- Voltage - Rated :
- 125VAC/DC
- Contact Length - Mating :
- 0.157 4.00mm
- Operating Temperature :
- -40°C~125°C
- Number of Positions :
- 14
- Insulation Material :
- Thermoplastic
- Current Rating (Amps) :
- 2A
- Contact Finish - Mating :
- Gold
- Pitch - Mating :
- 0.079 2.00mm
- Connector Type :
- Header, Breakaway
- Contact Finish Thickness - Mating :
- 3.94μin 0.100μm
- Contact Finish - Post :
- Tin
- Material Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 12 Weeks
- Packaging :
- Bulk
- Termination :
- Solder
- Shrouding :
- Unshrouded
- Style :
- Board to Board
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Color :
- Black
- Mounting Type :
- Through Hole, Right Angle
- Datasheets
- 2842154-7
AMPMODU Series 2-Row Header, Breakaway Solder Copper Alloy Bulk Through Hole, Right Angle Gold Thermoplastic 14-Position Board to Board 0.059 1.50mm Height
2842154-7 Overview
Currently, it is packaged in Header, Breakaway.The mounting type of the device is Through Hole, Right Angle.A Bulk case is used to package the product.A product of the AMPMODU Series, it belongs to the range of products of that series.A number of features make the Pick and Place feature more powerful.-40°C~125°C Operating Temperature is the default operating temperature for the device.
2842154-7 Features
AMPMODU series
2842154-7 Applications
There are a lot of TE Connectivity AMP Connectors
2842154-7 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
