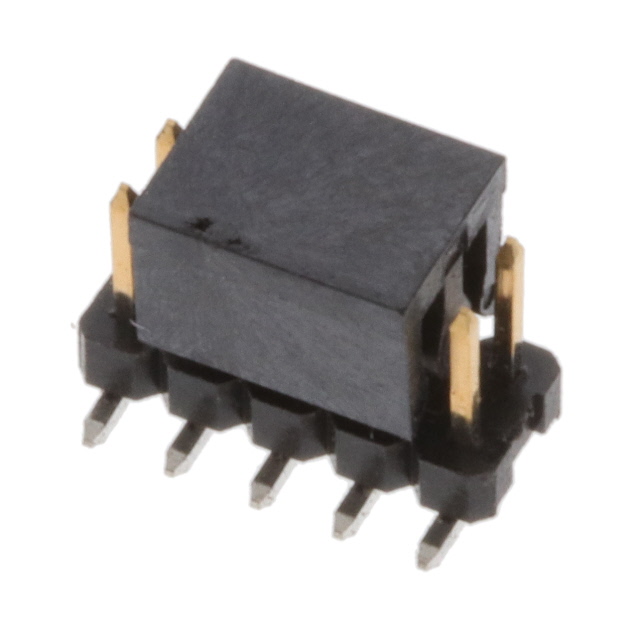

2842144-5
Or copy the link below:
- Mfr.Part #
- 2842144-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 10P,2MM,BRK HDR,DRVT,SMD,0.76AU,
- Stock
- 723
- In Stock ：
- 723
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Insulation Height :
- 0.059 1.50mm
- Mounting Type :
- Surface Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Material Flammability Rating :
- UL94 V-0
- Packaging :
- Tape and Reel (TR)
- Number of Rows :
- 2
- Connector Type :
- Header, Breakaway
- Contact Length - Mating :
- 0.157 4.00mm
- Number of Positions :
- 10
- Contact Finish - Mating :
- Gold
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Insulation Material :
- Thermoplastic
- Contact Finish - Post :
- Tin
- Fastening Type :
- Push-Pull
- Factory Lead Time :
- 12 Weeks
- Operating Temperature :
- -40°C~125°C
- Contact Shape :
- Square
- Contact Type :
- Male Pin
- Shrouding :
- Unshrouded
- Contact Material :
- COPPER ALLOY
- Number of Positions Loaded :
- All
- Voltage - Rated :
- 125VAC/DC
- Style :
- Board to Board
- Pitch - Mating :
- 0.079 2.00mm
- Termination :
- Solder
- Feature :
- Pick and Place
- Current Rating (Amps) :
- 2A
- Insulation Color :
- Black
- Series :
- AMPMODU
- Datasheets
- 2842144-5
AMPMODU Series 2-Row Header, Breakaway Solder Copper Alloy Tape & Reel (TR) Surface Mount Gold Thermoplastic 10-Position Board to Board 0.059 1.50mm Height
2842144-5 Overview
Packaging is in the form of Header, Breakaway.This device has a Surface Mount mounting type.An orange Tape & Reel (TR) case is used to package the product.Specifically, it is one of the products in the AMPMODU Series.Several benefits come from the Pick and Place feature.Devices operate at -40°C~125°C operating temperatures.
2842144-5 Features
AMPMODU series
2842144-5 Applications
There are a lot of TE Connectivity AMP Connectors
2842144-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
