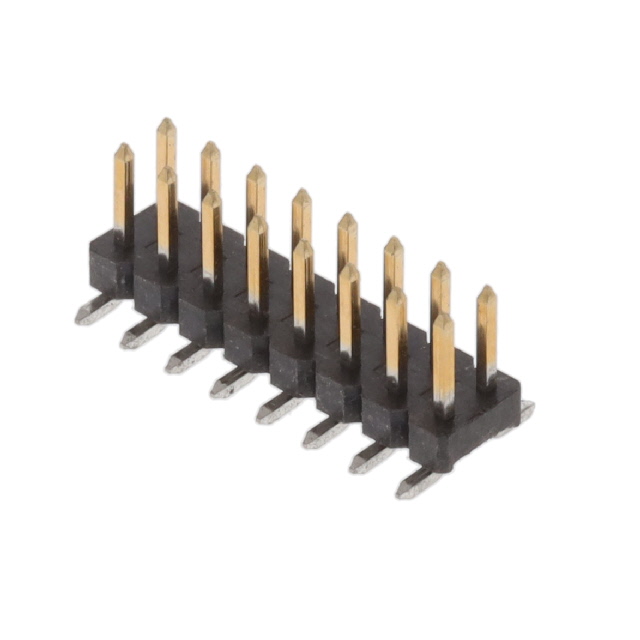

2842142-8
Or copy the link below:
- Mfr.Part #
- 2842142-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 16P,2MM,BRK HDR,DRVT,SMD,0.1AU,T
- Stock
- 5,037
- In Stock ：
- 5,037
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Shrouding :
- Unshrouded
- Connector Type :
- Header, Breakaway
- Insulation Color :
- Black
- Number of Positions :
- 16
- Feature :
- Pick and Place
- Contact Finish - Mating :
- Gold
- Operating Temperature :
- -40°C~125°C
- Series :
- AMPMODU
- Number of Positions Loaded :
- All
- Factory Lead Time :
- 12 Weeks
- Current Rating (Amps) :
- 2A
- Contact Finish - Post :
- Tin
- Packaging :
- Tape and Reel (TR)
- Contact Type :
- Male Pin
- Contact Finish Thickness - Mating :
- 3.94μin 0.100μm
- Fastening Type :
- Push-Pull
- Style :
- Board to Board
- Contact Length - Mating :
- 0.157 4.00mm
- Mounting Type :
- Surface Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Number of Rows :
- 2
- Voltage - Rated :
- 125VAC/DC
- Material Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.059 1.50mm
- Contact Material :
- COPPER ALLOY
- Insulation Material :
- Thermoplastic
- Pitch - Mating :
- 0.079 2.00mm
- Termination :
- Solder
- Contact Shape :
- Square
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Datasheets
- 2842142-8
AMPMODU Series 2-Row Header, Breakaway Solder Copper Alloy Tape & Reel (TR) Surface Mount Gold Thermoplastic 16-Position Board to Board 0.059 1.50mm Height
2842142-8 Overview
Currently, it is packaged in Header, Breakaway.The mounting type of the device is Surface Mount.A Tape & Reel (TR) case is used to package the product.A product of the AMPMODU Series, it belongs to the range of products of that series.A number of features make the Pick and Place feature more powerful.-40°C~125°C Operating Temperature is the default operating temperature for the device.
2842142-8 Features
AMPMODU series
2842142-8 Applications
There are a lot of TE Connectivity AMP Connectors
2842142-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
