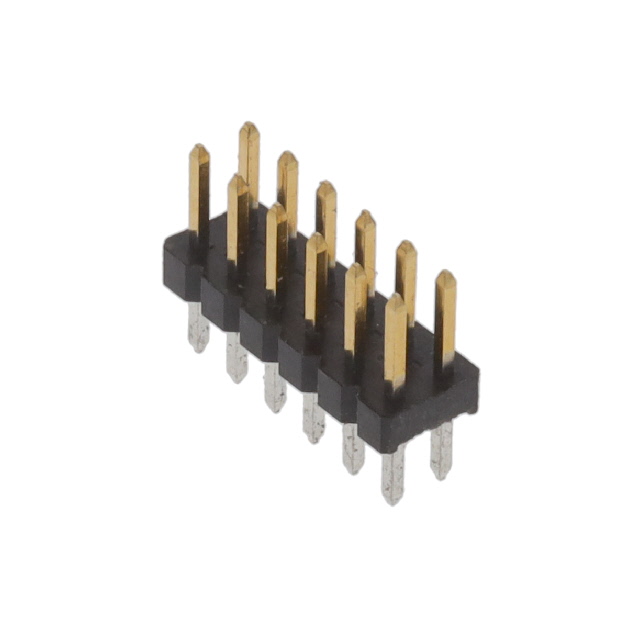

2842140-6
Or copy the link below:
- Mfr.Part #
- 2842140-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 12P,2MM,BRK HDR,DRVT,2.8,0.76AU,
- Stock
- 1,168
- In Stock ：
- 1,168
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Termination :
- Solder
- Number of Positions :
- 12
- Contact Shape :
- Square
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Length - Post :
- 0.110 2.79mm
- Number of Positions Loaded :
- All
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Insulation Color :
- Black
- Overall Contact Length :
- 0.327 8.30mm
- Number of Rows :
- 2
- Operating Temperature :
- -40°C~125°C
- Pitch - Mating :
- 0.079 2.00mm
- Contact Material :
- COPPER ALLOY
- Insulation Height :
- 0.059 1.50mm
- Style :
- Board to Board
- Material Flammability Rating :
- UL94 V-0
- Voltage - Rated :
- 125VAC/DC
- Current Rating (Amps) :
- 2A
- Factory Lead Time :
- 12 Weeks
- Series :
- AMPMODU
- Contact Type :
- Male Pin
- Mounting Type :
- Through Hole
- Contact Finish - Post :
- Tin
- Connector Type :
- Header, Breakaway
- Insulation Material :
- Thermoplastic
- Fastening Type :
- Push-Pull
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Length - Mating :
- 0.157 4.00mm
- Shrouding :
- Unshrouded
- Contact Finish - Mating :
- Gold
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Datasheets
- 2842140-6
AMPMODU Series 2-Row Header, Breakaway Solder Copper Alloy Bulk Through Hole Gold Thermoplastic 12-Position Board to Board 0.059 1.50mm Height
2842140-6 Overview
This product is packaged in a Header, Breakaway box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the AMPMODU Series.Operating temperature is set to -40°C~125°C.
2842140-6 Features
AMPMODU series
2842140-6 Applications
There are a lot of TE Connectivity AMP Connectors
2842140-6 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
