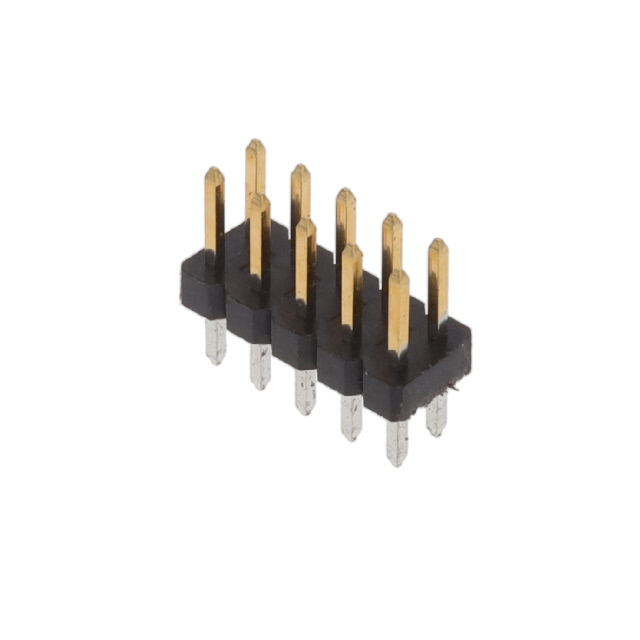

2842139-5
Or copy the link below:
- Mfr.Part #
- 2842139-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 10P,2MM,BRK HDR,DRVT,2.8,0.38AU,
- Stock
- 5,875
- In Stock ：
- 5,875
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Insulation Material :
- Thermoplastic
- Contact Length - Mating :
- 0.157 4.00mm
- Factory Lead Time :
- 12 Weeks
- Number of Positions Loaded :
- All
- Contact Shape :
- Square
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Series :
- AMPMODU
- Number of Rows :
- 2
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Mounting Type :
- Through Hole
- Style :
- Board to Board
- Connector Type :
- Header, Breakaway
- Contact Material :
- COPPER ALLOY
- Operating Temperature :
- -40°C~125°C
- Overall Contact Length :
- 0.327 8.30mm
- Contact Finish - Mating :
- Gold
- Contact Finish - Post :
- Tin
- Termination :
- Solder
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Voltage - Rated :
- 125VAC/DC
- Number of Positions :
- 10
- Contact Type :
- Male Pin
- Contact Length - Post :
- 0.110 2.79mm
- Pitch - Mating :
- 0.079 2.00mm
- Packaging :
- Bulk
- Fastening Type :
- Push-Pull
- Shrouding :
- Unshrouded
- Material Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.059 1.50mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Color :
- Black
- Current Rating (Amps) :
- 2A
- Datasheets
- 2842139-5
AMPMODU Series 2-Row Header, Breakaway Solder Copper Alloy Bulk Through Hole Gold Thermoplastic 10-Position Board to Board 0.059 1.50mm Height
2842139-5 Overview
Currently, it is packaged in Header, Breakaway.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the AMPMODU Series, it belongs to the range of products of that series.-40°C~125°C Operating Temperature is the default operating temperature for the device.
2842139-5 Features
AMPMODU series
2842139-5 Applications
There are a lot of TE Connectivity AMP Connectors
2842139-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
