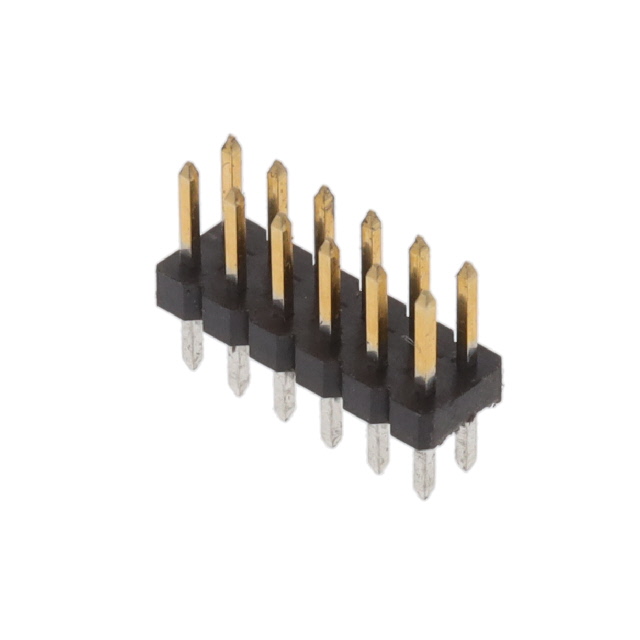

2842138-6
Or copy the link below:
- Mfr.Part #
- 2842138-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 12P,2MM,BRK HDR,DRVT,2.8,0.1AU,B
- Stock
- 5,958
- In Stock ：
- 5,958
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Current Rating (Amps) :
- 2A
- Contact Material :
- COPPER ALLOY
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Contact Type :
- Male Pin
- Voltage - Rated :
- 125VAC/DC
- Contact Finish - Mating :
- Gold
- Contact Shape :
- Square
- Insulation Color :
- Black
- Contact Finish - Post :
- Tin
- Fastening Type :
- Push-Pull
- Style :
- Board to Board
- Packaging :
- Bulk
- Number of Positions :
- 12
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Insulation Height :
- 0.059 1.50mm
- Number of Rows :
- 2
- Pitch - Mating :
- 0.079 2.00mm
- Contact Length - Post :
- 0.110 2.79mm
- Material Flammability Rating :
- UL94 V-0
- Series :
- AMPMODU
- Operating Temperature :
- -40°C~125°C
- Connector Type :
- Header, Breakaway
- Overall Contact Length :
- 0.327 8.30mm
- Termination :
- Solder
- Factory Lead Time :
- 12 Weeks
- Shrouding :
- Unshrouded
- Number of Positions Loaded :
- All
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Material :
- Thermoplastic
- Contact Finish Thickness - Mating :
- 3.94μin 0.100μm
- Mounting Type :
- Through Hole
- Contact Length - Mating :
- 0.157 4.00mm
- Datasheets
- 2842138-6
AMPMODU Series 2-Row Header, Breakaway Solder Copper Alloy Bulk Through Hole Gold Thermoplastic 12-Position Board to Board 0.059 1.50mm Height
2842138-6 Overview
Packaging for this item is Header, Breakaway.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the AMPMODU Series.In this case, the device operates at -40°C~125°C Operating Temperature.
2842138-6 Features
AMPMODU series
2842138-6 Applications
There are a lot of TE Connectivity AMP Connectors
2842138-6 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
