2842131-4
Or copy the link below:
- Mfr.Part #
- 2842131-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 8P,2MM,BRK HDR,DRVT,2.8,0.38AU,T
- Stock
- 5,181
- In Stock ：
- 5,181
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Style :
- Board to Board
- Contact Finish - Mating :
- Gold
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Length - Mating :
- 0.157 4.00mm
- Insulation Color :
- Black
- Number of Rows :
- 2
- Operating Temperature :
- -40°C~125°C
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Material Flammability Rating :
- UL94 V-0
- Series :
- AMPMODU
- Factory Lead Time :
- 12 Weeks
- Overall Contact Length :
- 0.327 8.30mm
- Insulation Material :
- Thermoplastic
- Connector Type :
- Header, Breakaway
- Current Rating (Amps) :
- 2A
- Fastening Type :
- Push-Pull
- Pitch - Mating :
- 0.079 2.00mm
- Shrouding :
- Unshrouded
- Mounting Type :
- Through Hole
- Contact Type :
- Male Pin
- Packaging :
- Bulk
- Insulation Height :
- 0.059 1.50mm
- Termination :
- Solder
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Contact Material :
- COPPER ALLOY
- Contact Finish - Post :
- Tin
- Number of Positions :
- 8
- Number of Positions Loaded :
- All
- Voltage - Rated :
- 125VAC/DC
- Contact Length - Post :
- 0.110 2.79mm
- Contact Shape :
- Square
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Feature :
- Pick and Place
- Datasheets
- 2842131-4

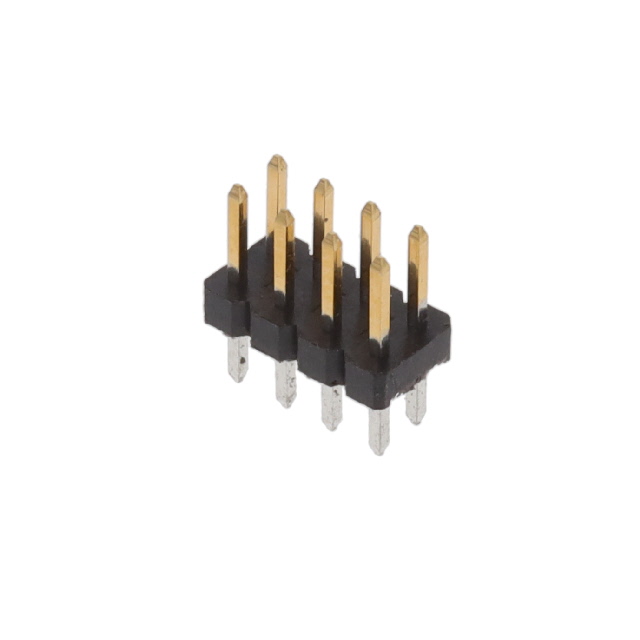

AMPMODU Series 2-Row Header, Breakaway Solder Copper Alloy Bulk Through Hole Gold Thermoplastic 8-Position Board to Board 0.059 1.50mm Height
2842131-4 Overview
A Header, Breakaway package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the AMPMODU Series of products.A number of features make it more powerful because of its Pick and Place feature.There is no operating temperature for the device.
2842131-4 Features
AMPMODU series
2842131-4 Applications
There are a lot of TE Connectivity AMP Connectors
2842131-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
