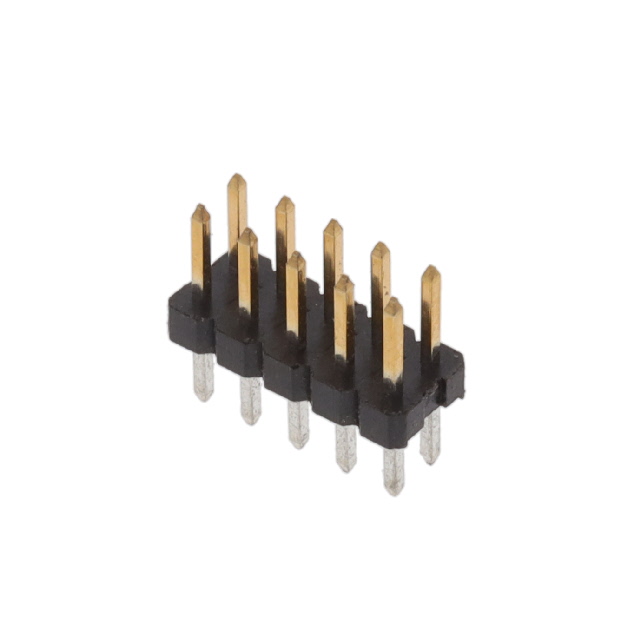

2842130-5
Or copy the link below:
- Mfr.Part #
- 2842130-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 10P,2MM,BRK HDR,DRVT,2.8,0.1AU,T
- Stock
- 4,956
- In Stock ：
- 4,956
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Finish - Mating :
- Gold
- Style :
- Board to Board
- Contact Finish - Post :
- Tin
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Contact Type :
- Male Pin
- Pitch - Mating :
- 0.079 2.00mm
- Packaging :
- Bulk
- Number of Positions :
- 10
- Feature :
- Pick and Place
- Shrouding :
- Unshrouded
- Insulation Color :
- Black
- Number of Rows :
- 2
- Voltage - Rated :
- 125VAC/DC
- Factory Lead Time :
- 12 Weeks
- Insulation Height :
- 0.059 1.50mm
- Overall Contact Length :
- 0.327 8.30mm
- Current Rating (Amps) :
- 2A
- Contact Length - Mating :
- 0.157 4.00mm
- Contact Shape :
- Square
- Series :
- AMPMODU
- Fastening Type :
- Push-Pull
- Operating Temperature :
- -40°C~125°C
- Contact Length - Post :
- 0.110 2.79mm
- Number of Positions Loaded :
- All
- Termination :
- Solder
- Mounting Type :
- Through Hole
- Insulation Material :
- Thermoplastic
- Contact Finish Thickness - Mating :
- 3.94μin 0.100μm
- Contact Material :
- COPPER ALLOY
- Connector Type :
- Header, Breakaway
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 2842130-5
AMPMODU Series 2-Row Header, Breakaway Solder Copper Alloy Bulk Through Hole Gold Thermoplastic 10-Position Board to Board 0.059 1.50mm Height
2842130-5 Overview
Packaging is in the form of Header, Breakaway.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the AMPMODU Series.Several benefits come from the Pick and Place feature.Devices operate at -40°C~125°C operating temperatures.
2842130-5 Features
AMPMODU series
2842130-5 Applications
There are a lot of TE Connectivity AMP Connectors
2842130-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
