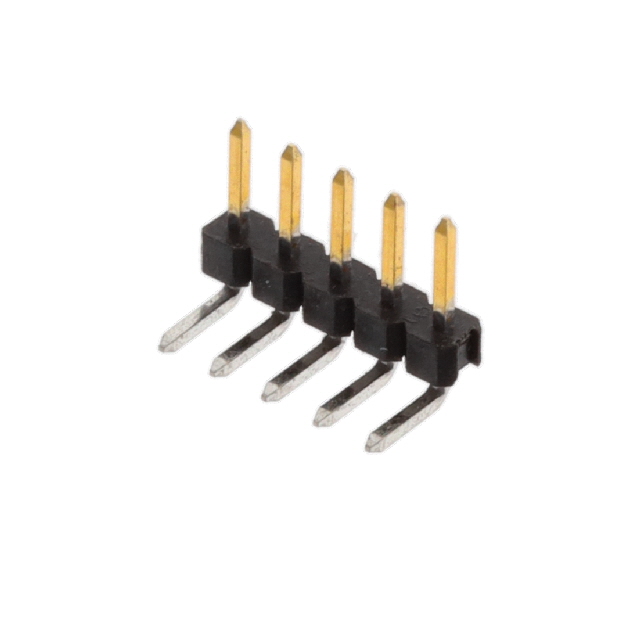

2842115-5
Or copy the link below:
- Mfr.Part #
- 2842115-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 5P,2MM,BRK HDR,SRRT,2.8,0.38AU,T
- Stock
- 1,102
- In Stock ：
- 1,102
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Shrouding :
- Unshrouded
- Number of Rows :
- 1
- Material Flammability Rating :
- UL94 V-0
- Feature :
- Pick and Place
- Contact Shape :
- Square
- Termination :
- Solder
- Connector Type :
- Header, Breakaway
- Contact Type :
- Male Pin
- Contact Finish - Mating :
- Gold
- Series :
- AMPMODU
- Mounting Type :
- Through Hole, Right Angle
- Insulation Material :
- Thermoplastic
- Number of Positions :
- 5
- Contact Material :
- COPPER ALLOY
- Contact Length - Post :
- 0.110 2.79mm
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Packaging :
- Bulk
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Number of Positions Loaded :
- All
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -40°C~125°C
- Contact Finish - Post :
- Tin
- Fastening Type :
- Push-Pull
- Style :
- Board to Board
- Current Rating (Amps) :
- 2A
- Pitch - Mating :
- 0.079 2.00mm
- Insulation Height :
- 0.059 1.50mm
- Factory Lead Time :
- 12 Weeks
- Voltage - Rated :
- 125VAC/DC
- Insulation Color :
- Black
- Contact Length - Mating :
- 0.157 4.00mm
- Datasheets
- 2842115-5
AMPMODU Series 1-Row Header, Breakaway Solder Copper Alloy Bulk Through Hole, Right Angle Gold Thermoplastic 5-Position Board to Board 0.059 1.50mm Height
2842115-5 Overview
This product is packaged in a Header, Breakaway cartonThis device's mounting type is Through Hole, Right Angle.It's packaged in a Bulk case.AMPMODU Series product.Its Pick and Place feature makes it more powerful in a number of ways.Running in -40°C~125°C Operating Temperature.
2842115-5 Features
AMPMODU series
2842115-5 Applications
There are a lot of TE Connectivity AMP Connectors
2842115-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
