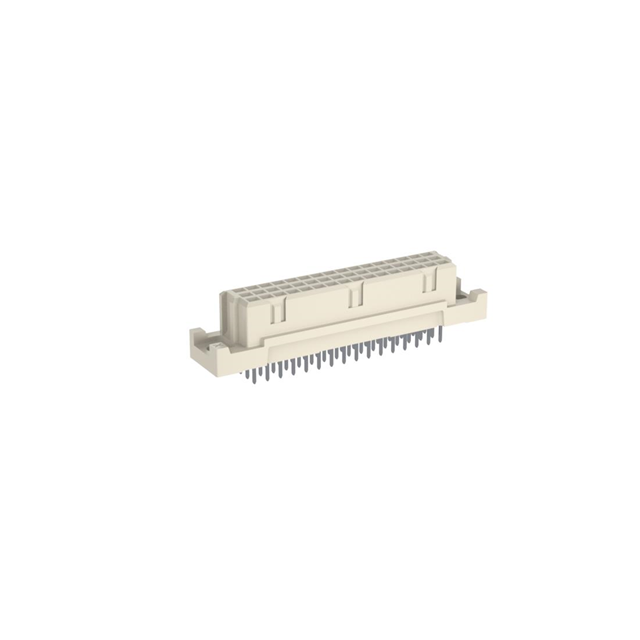

284174

Manufacturer :

TE Connectivity

Product Category :

DIN 41612

IEC Conformance :

No

Mounting Type :

BOARD

Subcategory :

Headers and Edge Type Connectors

Mixed Contacts :

No

Reach Compliance Code :

Compliant

Insertion Force-Max :

.9452 N

Body Orientation :

Straight

Mounting Option 2 :

LOCKING

Mating Contact Row Spacing :

0.1 inch

Durability :

400 Cycles

Terminal Length :

0.157 inch

Mating Contact Pitch :

0.1 inch

Pitch (mm) :

2.54(mm)

Mounting Style :

Through Hole

PCB Contact Pattern :

RECTANGULAR

Total Number of Contacts :

48

Reference Standard :

UL, CSA

Contact Resistance :

20 mΩ

Terminal Pitch :

2.54 mm

DIN Conformance :

yes

Product Length (mm) :

55(mm)

Insulation Resistance :

10000000000 Ω

Rated Current (Signal) :

2 A

Termination Type :

Solder

Name of Rows Loaded :

A,B,C

Type :

DIN 41612

Dielectric Withstanding Voltage :

1400VAC V

Polarization Key :

POLARIZED HOUSING

Option :

GENERAL PURPOSE

Connector Type :

BOARD EURO CONNECTOR

Reliability :

COMMERCIAL

Filter Feature :

No

Number of Contacts :

48(POS)

Number Of PCB Rows :

3

Body Depth :

0.457 inch

Contact Material :

NOT SPECIFIED

Product Depth (mm) :

10.6(mm)

Gender :

F

Body/Shell Style :

PLUG

ECCN Code :

EAR99

Product Height (mm) :

11.6(mm)

Mounting Option 1 :

HOLE .099-.111

Manufacturer :

ERNI

Body Breadth :

0.417 inch

MIL Conformance :

No

Additional Feature :

STANDARD: DIN 41612, IEC 60603-2

Contact Gender :

FEMALE

Contact Style :

SQ PIN-SKT

HTS Code :

8536.69.40.40

Termination Method :

Solder

PCB Contact Row Spacing :

2.54 mm

Number of Contact Rows :

3

Pbfree Code :

yes
