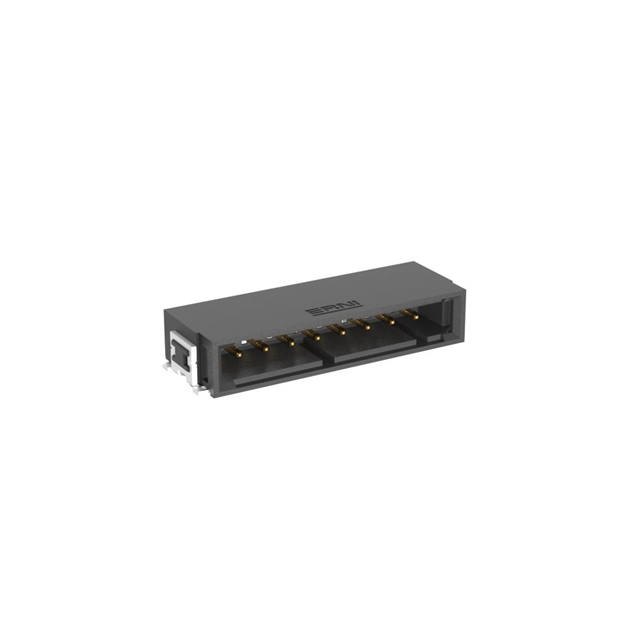

284121
Or copy the link below:
- Mfr.Part #
- 284121
- Manufacturer
- TE Connectivity
- Package / Case
- Datasheet
- Download
- Description
- MAXIBR M 08POS RA A SMT BK
- Stock
- 1,699
- In Stock ：
- 1,699
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity
- Product Category :
- Headers, Male Pins
- Mixed Contacts :
- No
- Contact Finish Termination :
- TIN (236)
- Reach Compliance Code :
- Compliant
- Total Number of Contacts :
- 8
- Contact Material :
- COPPER ALLOY
- DIN Conformance :
- No
- Mounting Type :
- BOARD
- Rated Current (Signal) :
- 13 A
- Product Depth (mm) :
- 12.2(mm)
- Termination Method :
- Solder
- Body Depth :
- 0.48 inch
- Pbfree Code :
- yes
- Current Rating (Max) :
- 13/Contact(A)
- Contact Gender :
- Male
- Manufacturer :
- ERNI
- Gender :
- HDR
- Connector Type :
- COMBINATION LINE CONNECTOR
- Contact Resistance Max :
- 25(mohm)
- Packaging :
- Tape and Reel
- Mounting Style :
- Surface Mount
- Housing Color :
- Black
- Product Height (mm) :
- 5.05(mm)
- Type :
- Shrouded Header
- Body Orientation :
- RIGHT ANGLE
- Number of Contacts :
- 8(POS)
- Product Length (mm) :
- 26.78(mm)
- IEC Conformance :
- No
- Termination Type :
- Surface Mount
- Number of Contact Rows :
- 1
- Body Breadth :
- 0.198 inch
- Option :
- GENERAL PURPOSE
- Contact Plating :
- Gold
- MIL Conformance :
- No
- Filter Feature :
- No
- Pitch (mm) :
- 2.54(mm)
- Operating Temp Range :
- -55C to 150C
- Empty Shell :
- No
- JESD-609 Code :
- e3
- Datasheets
- 284121
