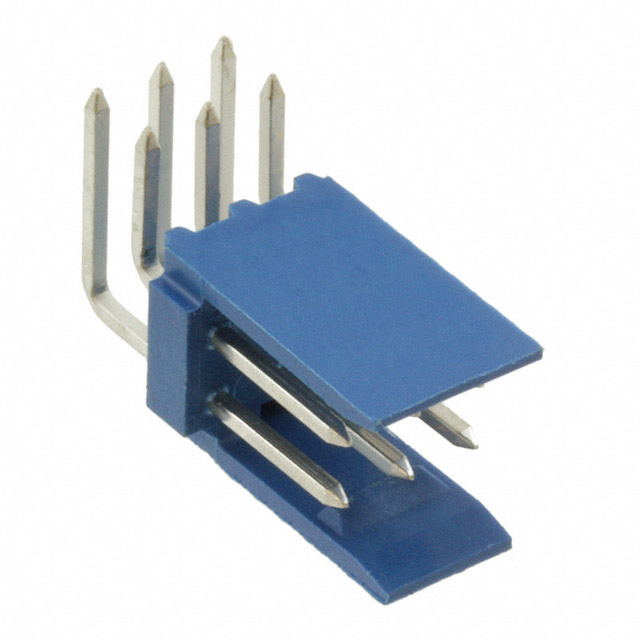

281742-3
Or copy the link below:
- Mfr.Part #
- 281742-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 6POS 2.54MM
- Stock
- 2,445
- In Stock ：
- 2,445
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Mixed Contacts :
- No
- Operating Temperature :
- -40°C~100°C
- Mount :
- Through Hole
- Lead Length :
- 2.9mm
- Fastening Type :
- Friction Lock
- Durability :
- 30 Cycles
- Connector Type :
- Header
- Contact Current Rating :
- 3A
- Contact Gender :
- Male
- IEC Conformance :
- No
- Housing Color :
- Blue
- Shrouding :
- Shrouded - 2 Wall
- REACH SVHC :
- No SVHC
- Orientation :
- RIGHT ANGLE
- DIN Conformance :
- No
- Shrouded End Dimension :
- 1.27 mm
- Series :
- HE13/HE14
- JESD-609 Code :
- e3
- Voltage - Rated DC :
- 500V
- Reference Standard :
- UL
- Style :
- Board to Cable/Wire
- PCB Contact Pattern :
- RECTANGULAR
- Contact Type :
- Male Pin
- RoHS Status :
- RoHS Compliant
- Contact Material :
- Phosphor Bronze
- Factory Lead Time :
- 15 Weeks
- Contact Length - Post :
- 0.114 2.90mm
- Keyed :
- No
- UL Flammability Code :
- 94V-0
- Packaging :
- Bulk
- Body Breadth :
- 0.3 inch
- Mating Contact Pitch :
- 0.1 inch
- Working Voltage :
- 500V
- Termination :
- Solder
- Pitch - Mating :
- 0.100 2.54mm
- Published :
- 2004
- Rated Current (Signal) :
- 3A
- ELV :
- Compliant
- Number of Positions Loaded :
- All
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- MIL Conformance :
- No
- Insulation Resistance :
- 1GOhm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Insulation Height :
- 0.300 7.62mm
- Mating Post Length :
- 6.75mm
- Material :
- Glass, Polyester
- Contact Shape :
- Square
- Lead Pitch :
- 2.54mm
- Number of Rows :
- 2
- Flammability Rating :
- UL94 V-0
- Number of Conductors :
- ONE
- Dielectric Withstanding Voltage :
- 700VAC V
- Depth :
- 15.34mm
- Mounting Type :
- Through Hole, Right Angle
- Applications :
- GENERAL PURPOSE
- Number of Poles :
- 6
- Hole Diameter :
- 1 mm
- Reliability :
- COMMERCIAL
- Insulation Material :
- Thermoplastic
- Number Of PCB Rows :
- 2
- Contact Length - Mating :
- 0.276 7.00mm
- Contact Resistance :
- 30mOhm
- Length :
- 7.62mm
- Contact Finish - Mating :
- Tin
- Filter Feature :
- No
- Material Flammability Rating :
- UL94 V-0
- Lead Free :
- Lead Free
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Current Rating :
- 3A
- Datasheets
- 281742-3
HE13/HE14 Series 2-Row Header Solder Phosphor Bronze Bulk Through Hole, Right Angle Tin Thermoplastic Board to Cable/Wire 0.300 7.62mm Height
281742-3 Overview
A Header packaging is included.It's mounted Through Hole, Right Angle.We use a Bulk case to package the product.It's from the HE13/HE14 Series.The device could be used for General Purpose.It's mounted by Through Hole.-40°C~100°C Operating Temperature is what the device runs at.
281742-3 Features
HE13/HE14 series
281742-3 Applications
There are a lot of TE Connectivity AMP Connectors
281742-3 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
