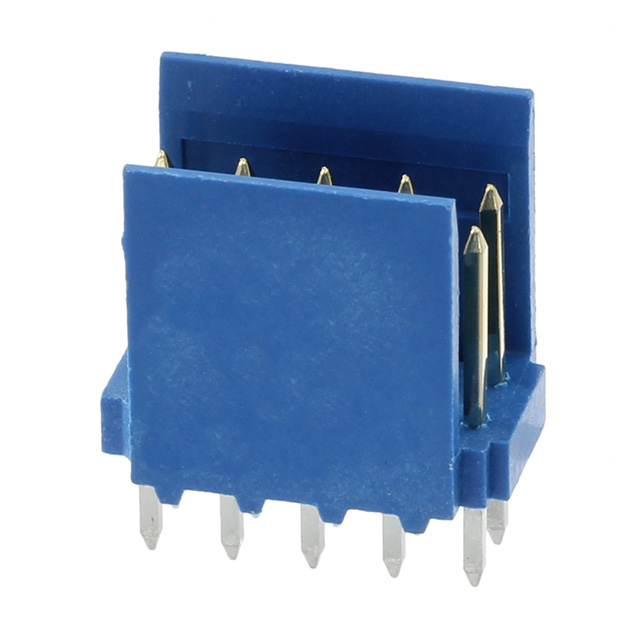

281740-5
Or copy the link below:
- Mfr.Part #
- 281740-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 10POS 2.54MM
- Stock
- 1,513
- In Stock ：
- 1,513
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- ECCN Code :
- EAR99
- Contact Shape :
- Square
- Packaging :
- Bulk
- Mixed Contacts :
- No
- Factory Lead Time :
- 16 Weeks
- Number of Positions :
- 10
- UL Flammability Code :
- 94V-0
- Shrouded End Dimension :
- 1.27 mm
- Contact Material :
- Phosphor Bronze
- Pitch - Mating :
- 0.100 2.54mm
- Insulation Resistance :
- 5GOhm
- Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Post :
- 98.4μin 2.50μm
- Contact Finish - Post :
- Tin
- IEC Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Contact Length - Mating :
- 0.276 7.00mm
- Shrouding :
- Shrouded - 2 Wall
- Insulation Color :
- Blue
- Series :
- HE13/HE14
- Contact Current Rating :
- 3A
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Finish Thickness - Mating :
- 16.0μin 0.41μm
- Operating Temperature :
- -40°C~100°C
- Insulation Height :
- 0.449 11.40mm
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Termination :
- Solder
- MIL Conformance :
- No
- Mating Post Length :
- 6.75mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions Loaded :
- All
- Contact Gender :
- Male
- Contact Finish - Mating :
- Gold
- Fastening Type :
- Friction Lock
- Contact Type :
- Male Pin
- Current Rating :
- 3A
- DIN Conformance :
- No
- Published :
- 2008
- Insulation Material :
- Thermoplastic
- RoHS Status :
- RoHS Compliant
- ELV :
- Compliant
- Contact Length - Post :
- 0.114 2.90mm
- Keyed :
- No
- Applications :
- GENERAL PURPOSE
- Style :
- Board to Cable/Wire
- Lead Length :
- 2.9mm
- Number of Rows :
- 2
- Contact Plating :
- Tin, Gold
- Orientation :
- Vertical
- HTS Code :
- 8536.69.40.40
- Connector Type :
- Header
- Mounting Type :
- Through Hole
- Mount :
- Through Hole
- Overall Contact Length :
- 0.492 12.50mm
- Filter Feature :
- No
- Datasheets
- 281740-5
HE13/HE14 Series 2-Row Header Solder Phosphor Bronze Bulk Through Hole Gold Thermoplastic 10-Position Board to Cable/Wire 0.449 11.40mm Height
281740-5 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the HE13/HE14 Series.The device may be used for the following applications: General Purpose.It is mounted by Through Hole.It operates at an operating temperature of -40°C~100°C.
281740-5 Features
HE13/HE14 series
281740-5 Applications
There are a lot of TE Connectivity AMP Connectors
281740-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
