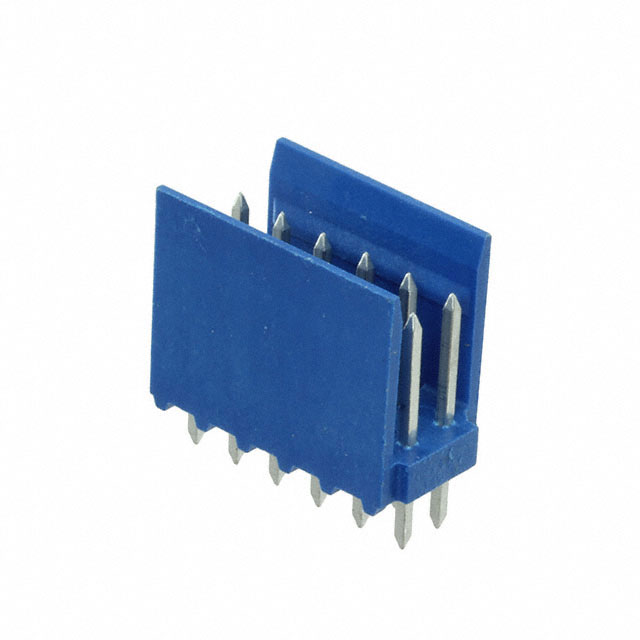

281739-6
Or copy the link below:
- Mfr.Part #
- 281739-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 12POS 2.54MM
- Stock
- 1,796
- In Stock ：
- 1,796
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Pbfree Code :
- yes
- Insulation Resistance :
- 1GOhm
- MIL Conformance :
- No
- JESD-609 Code :
- e3
- Series :
- HE13/HE14
- Voltage - Rated DC :
- 500V
- Current Rating :
- 3A
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Pitch - Mating :
- 0.100 2.54mm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- RoHS Status :
- RoHS Compliant
- Fastening Type :
- Friction Lock
- Published :
- 2004
- Overall Contact Length :
- 0.492 12.50mm
- Additional Feature :
- AMPMODU
- Contact Resistance :
- 15mOhm
- Mixed Contacts :
- No
- Lead Length :
- 2.9mm
- Material Flammability Rating :
- UL94 V-0
- Contact Length - Post :
- 0.114 2.90mm
- Contact Shape :
- Square
- Insulation Height :
- 0.449 11.40mm
- Working Voltage :
- 500V
- Applications :
- GENERAL PURPOSE
- Lead Pitch :
- 2.54mm
- Contact Finish - Mating :
- Tin
- Packaging :
- Bulk
- Factory Lead Time :
- 15 Weeks
- Connector Type :
- Header
- Operating Temperature :
- -40°C~100°C
- Depth :
- 7.62mm
- Length :
- 15.24mm
- Keyed :
- No
- PCB Mounting Orientation :
- Vertical
- Termination :
- Solder
- Shrouding :
- Shrouded - 2 Wall
- Filter Feature :
- No
- Hole Diameter :
- 1 mm
- Contact Current Rating :
- 3A
- Number of Rows :
- 2
- Mating Post Length :
- 6.75mm
- ELV :
- Compliant
- UL Flammability Code :
- 94V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Material :
- Thermoplastic
- Mounting Type :
- Through Hole
- Flammability Rating :
- UL94 V-0
- Shrouded End Dimension :
- 1.27 mm
- Material :
- Glass, Polyester
- Style :
- Board to Cable/Wire
- Housing Color :
- Blue
- IEC Conformance :
- No
- Contact Type :
- Male Pin
- Number of Positions Loaded :
- All
- Number of Poles :
- 12
- DIN Conformance :
- No
- Contact Gender :
- Male
- Mount :
- Through Hole
- Contact Material :
- Phosphor Bronze
- Contact Length - Mating :
- 0.276 7.00mm
- REACH SVHC :
- No SVHC
- Datasheets
- 281739-6
HE13/HE14 Series 2-Row Header Solder Phosphor Bronze Bulk Through Hole Tin Thermoplastic Board to Cable/Wire 0.449 11.40mm Height
281739-6 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number HE13/HE14 belongs to the HE13/HE14 Series.Further, there are features such as AMPMODU, to name only a few.In addition to General Purpose, there are other possible applications for the device.There is a Through Hole mount on the part.This device operates at a temperature of -40°C~100°C.
281739-6 Features
HE13/HE14 series
281739-6 Applications
There are a lot of TE Connectivity AMP Connectors
281739-6 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
