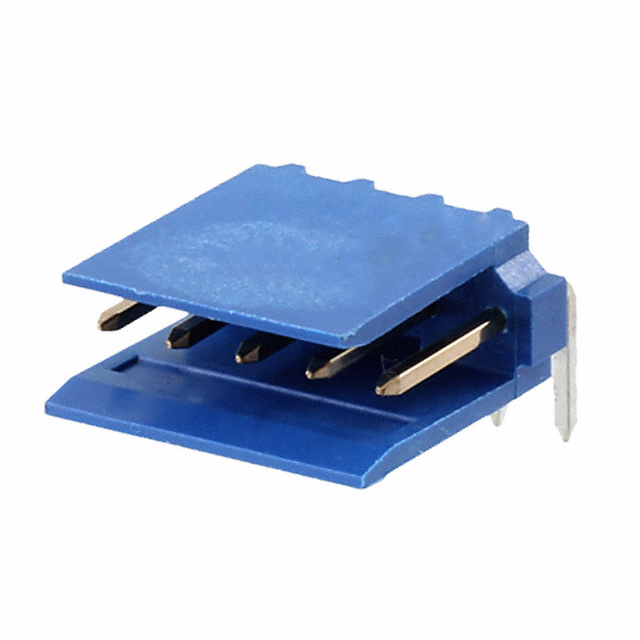

281699-5
Or copy the link below:
- Mfr.Part #
- 281699-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 5POS 2.54MM
- Stock
- 5,765
- In Stock ：
- 5,765
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Insulation Height :
- 0.200 5.08mm
- DIN Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Contact Finish Thickness - Mating :
- 16.0μin 0.41μm
- Contact Finish - Mating :
- Gold
- Applications :
- GENERAL PURPOSE
- Current Rating :
- 3A
- Contact Finish Thickness - Post :
- 98.4μin 2.50μm
- Contact Finish - Post :
- Tin
- Filter Feature :
- No
- Lead Length :
- 2.9mm
- Fastening Type :
- Friction Lock
- Contact Length - Post :
- 0.114 2.90mm
- Insulation Color :
- Blue
- Connector Type :
- Header
- Packaging :
- Bulk
- Factory Lead Time :
- 15 Weeks
- Row Spacing :
- 2.54 mm
- Mixed Contacts :
- No
- Series :
- HE13/HE14
- Number of Rows :
- 1
- Insulation Resistance :
- 5GOhm
- Mounting Type :
- Through Hole, Right Angle
- Keyed :
- No
- Mount :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Approval Agency :
- CSA
- PCB Mounting Orientation :
- RIGHT ANGLE
- Contact Current Rating :
- 3A
- Number of Positions Loaded :
- All
- Contact Type :
- Male Pin
- Contact Length - Mating :
- 0.276 7.00mm
- Style :
- Board to Cable/Wire
- Pitch - Mating :
- 0.100 2.54mm
- Mating Post Length :
- 6.75mm
- Depth :
- 12.8mm
- MIL Conformance :
- No
- Flammability Rating :
- UL94 V-0
- Shrouded End Dimension :
- 1.27 mm
- Insulation Material :
- Thermoplastic
- Contact Material :
- Phosphor Bronze
- JESD-609 Code :
- e3
- Number of Positions :
- 5
- Contact Shape :
- Square
- Termination :
- Solder
- Published :
- 2008
- Operating Temperature :
- -40°C~100°C
- Contact Gender :
- Male
- Contact Plating :
- Tin, Gold
- Orientation :
- RIGHT ANGLE
- Shrouding :
- Shrouded - 2 Wall
- Length :
- 12.7mm
- ELV :
- Compliant
- IEC Conformance :
- No
- UL Flammability Code :
- 94V-0
- Datasheets
- 281699-5
HE13/HE14 Series 1-Row Header Solder Phosphor Bronze Bulk Through Hole, Right Angle Gold Thermoplastic 5-Position Board to Cable/Wire 0.200 5.08mm Height
281699-5 Overview
The product is packaged in Header.This device is mounted in the Through Hole, Right Angle position.It has been determined that a Bulk case is necessary to package the product.There is a product in the HE13/HE14 Series.The device could be used for the following application: General Purpose.Part Through Hole is mounted to the part.As a result, the device runs at -40°C~100°C Operating Temperature.
281699-5 Features
HE13/HE14 series
281699-5 Applications
There are a lot of TE Connectivity AMP Connectors
281699-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
