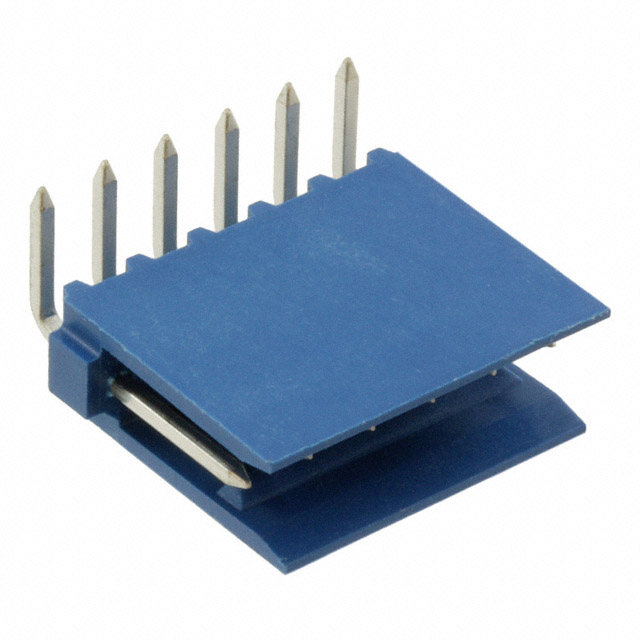

281698-6
Or copy the link below:
- Mfr.Part #
- 281698-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 6POS 2.54MM
- Stock
- 7,803
- In Stock ：
- 7,803
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Length :
- 15.24mm
- Contact Material :
- Phosphor Bronze
- Contact Length - Mating :
- 0.276 7.00mm
- Additional Feature :
- AMPMODU
- Lead Pitch :
- 2.54mm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Keyed :
- No
- Mount :
- Through Hole
- Published :
- 2004
- Termination :
- Solder
- Applications :
- GENERAL PURPOSE
- Pitch - Mating :
- 0.100 2.54mm
- Shrouding :
- Shrouded - 2 Wall
- Number of Poles :
- 6
- Insulation Resistance :
- 1GOhm
- Depth :
- 12.8mm
- Material :
- Glass, Polyester
- Contact Length - Post :
- 0.114 2.90mm
- Approval Agency :
- CSA
- Pbfree Code :
- yes
- DIN Conformance :
- No
- Factory Lead Time :
- 15 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Style :
- Board to Cable/Wire
- Shrouded End Dimension :
- 1.27 mm
- Packaging :
- Bulk
- Series :
- HE13/HE14
- Contact Resistance :
- 30mOhm
- Number of Positions Loaded :
- All
- Number of Rows :
- 1
- RoHS Status :
- RoHS Compliant
- Current Rating :
- 3A
- Mounting Type :
- Through Hole, Right Angle
- Working Voltage :
- 500V
- Housing Color :
- Blue
- IEC Conformance :
- No
- Filter Feature :
- No
- Orientation :
- RIGHT ANGLE
- Mixed Contacts :
- No
- JESD-609 Code :
- e3
- Contact Finish - Mating :
- Tin
- Mating Post Length :
- 6.75mm
- REACH SVHC :
- Unknown
- Contact Shape :
- Square
- Contact Current Rating :
- 3A
- Contact Gender :
- Male
- MIL Conformance :
- No
- Flammability Rating :
- UL94 V-0
- Material Flammability Rating :
- UL94 V-0
- ELV :
- Compliant
- Insulation Material :
- Thermoplastic
- Row Spacing :
- 2.54 mm
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Lead Length :
- 2.9mm
- Hole Diameter :
- 1 mm
- Operating Temperature :
- -40°C~100°C
- Fastening Type :
- Friction Lock
- Insulation Height :
- 0.200 5.08mm
- Voltage - Rated DC :
- 500V
- UL Flammability Code :
- 94V-0
- Contact Type :
- Male Pin
- Connector Type :
- Header
- Datasheets
- 281698-6
HE13/HE14 Series 1-Row Header Solder Phosphor Bronze Bulk Through Hole, Right Angle Tin Thermoplastic Board to Cable/Wire 0.200 5.08mm Height
281698-6 Overview
It comes in Header packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Bulk case is used.It belongs to the HE13/HE14 Series of products.In addition, there are other features such as AMPMODU, to mention only a few.General Purpose is a possible application for the device.The part is mounted by Through Hole.The device runs in -40°C~100°C Operating Temperature.
281698-6 Features
HE13/HE14 series
281698-6 Applications
There are a lot of TE Connectivity AMP Connectors
281698-6 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
