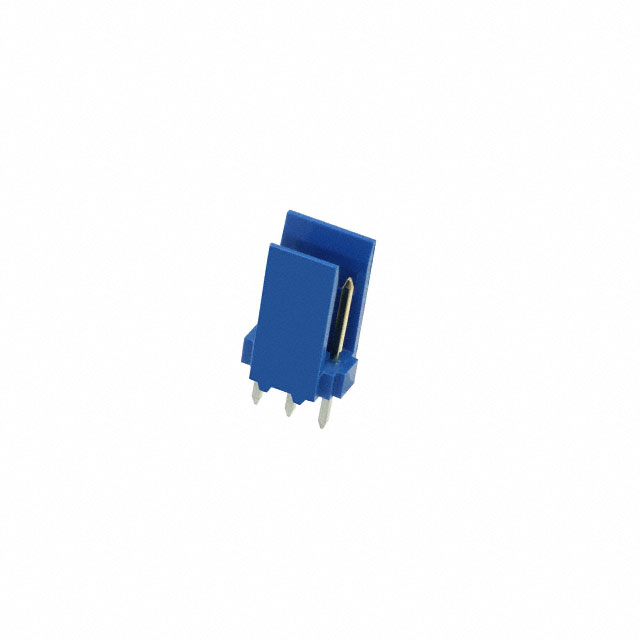

281696-3
Or copy the link below:
- Mfr.Part #
- 281696-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 2.54MM
- Stock
- 448
- In Stock ：
- 448
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number of Positions Loaded :
- All
- Style :
- Board to Cable/Wire
- Contact Current Rating :
- 3A
- Row Spacing :
- 2.54 mm
- Applications :
- GENERAL PURPOSE
- Shrouded End Dimension :
- 1.27 mm
- Contact Shape :
- Square
- Orientation :
- Vertical
- Pbfree Code :
- yes
- Fastening Type :
- Friction Lock
- Factory Lead Time :
- 16 Weeks
- IEC Conformance :
- No
- Approval Agency :
- CSA
- Contact Type :
- Male Pin
- Published :
- 2007
- JESD-609 Code :
- e4
- Insulation Resistance :
- 5GOhm
- Lead Length :
- 2.9mm
- Number of Positions :
- 3
- Keyed :
- No
- Operating Temperature :
- -40°C~100°C
- Shrouding :
- Shrouded - 2 Wall
- Additional Feature :
- AMPMODU
- Mixed Contacts :
- No
- Contact Finish Thickness - Post :
- 98.4μin 2.50μm
- Number of Rows :
- 1
- UL Flammability Code :
- 94V-0
- Contact Material :
- Phosphor Bronze
- MIL Conformance :
- No
- Current Rating :
- 3A
- Termination :
- Solder
- Pitch - Mating :
- 0.100 2.54mm
- ELV :
- Compliant
- Depth :
- 5.08mm
- Flammability Rating :
- UL94 V-0
- Material Flammability Rating :
- UL94 V-0
- Contact Gender :
- Male
- Connector Type :
- Header
- Contact Finish Thickness - Mating :
- 16.0μin 0.41μm
- Series :
- HE13/HE14
- Insulation Material :
- Thermoplastic
- Length :
- 7.62mm
- Contact Length - Mating :
- 0.276 7.00mm
- DIN Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Mount :
- Through Hole
- Contact Length - Post :
- 0.114 2.90mm
- Overall Contact Length :
- 0.492 12.50mm
- Mounting Type :
- Through Hole
- Contact Finish - Post :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Filter Feature :
- No
- Contact Finish - Mating :
- Gold
- Mating Post Length :
- 6.75mm
- Housing Color :
- Blue
- RoHS Status :
- RoHS Compliant
- Packaging :
- Bulk
- Insulation Height :
- 0.449 11.40mm
- Datasheets
- 281696-3
HE13/HE14 Series 1-Row Header Solder Phosphor Bronze Bulk Through Hole Gold Thermoplastic 3-Position Board to Cable/Wire 0.449 11.40mm Height
281696-3 Overview
It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the HE13/HE14 Series of products.In addition, there are other features such as AMPMODU, to mention only a few.General Purpose is a possible application for the device.The part is mounted by Through Hole.The device runs in -40°C~100°C Operating Temperature.
281696-3 Features
HE13/HE14 series
281696-3 Applications
There are a lot of TE Connectivity AMP Connectors
281696-3 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
