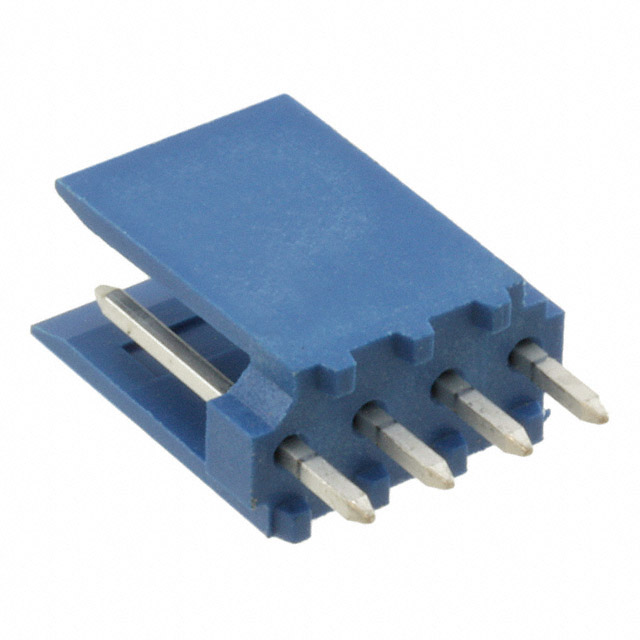

281695-4
Or copy the link below:
- Mfr.Part #
- 281695-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 2.54MM
- Stock
- 4,140
- In Stock ：
- 4,140
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Keyed :
- No
- Shrouding :
- Shrouded - 2 Wall
- Flammability Rating :
- UL94 V-0
- Style :
- Board to Cable/Wire
- Shrouded End Dimension :
- 1.27 mm
- Number of Rows :
- 1
- Contact Length - Post :
- 0.114 2.90mm
- MIL Conformance :
- No
- Packaging :
- Bulk
- Contact Gender :
- Male
- Current Rating :
- 3A
- Fastening Type :
- Friction Lock
- Filter Feature :
- No
- Mounting Type :
- Through Hole
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Number of Positions Loaded :
- All
- Material :
- Glass, Polyester
- PCB Mounting Orientation :
- Vertical
- Insulation Height :
- 0.449 11.40mm
- Contact Resistance :
- 15mOhm
- Hole Diameter :
- 1 mm
- Mount :
- Through Hole
- Row Spacing :
- 2.54 mm
- JESD-609 Code :
- e0
- Working Voltage :
- 500V
- Published :
- 2005
- Contact Shape :
- Square
- Pitch - Mating :
- 0.100 2.54mm
- Contact Type :
- Male Pin
- Length :
- 10.16mm
- Lead Pitch :
- 2.54mm
- DIN Conformance :
- No
- Housing Color :
- Blue
- Mixed Contacts :
- No
- Applications :
- GENERAL PURPOSE
- Approval Agency :
- CSA
- Termination :
- Solder
- IEC Conformance :
- No
- Contact Length - Mating :
- 0.276 7.00mm
- Voltage - Rated DC :
- 500V
- Mating Post Length :
- 6.75mm
- Additional Feature :
- AMPMODU
- Overall Contact Length :
- 0.492 12.50mm
- Contact Material :
- Phosphor Bronze
- Pbfree Code :
- yes
- ELV :
- Compliant
- Lead Length :
- 2.9mm
- Insulation Resistance :
- 1GOhm
- RoHS Status :
- RoHS Compliant
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -40°C~100°C
- REACH SVHC :
- No SVHC
- Lead Free :
- Lead Free
- Number of Poles :
- 4
- Depth :
- 5.08mm
- Contact Finish - Mating :
- Tin
- Insulation Material :
- Thermoplastic
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Current Rating :
- 3A
- Series :
- HE13/HE14
- Connector Type :
- Header
- Factory Lead Time :
- 15 Weeks
- Datasheets
- 281695-4
HE13/HE14 Series 1-Row Header Solder Phosphor Bronze Bulk Through Hole Tin Thermoplastic Board to Cable/Wire 0.449 11.40mm Height
281695-4 Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the HE13/HE14 Series.Moreover, there are a number of other features, including AMPMODU, to name just a few.A possible application for the device is General Purpose.Through Hole is used to mount the part.In this case, the device operates at -40°C~100°C Operating Temperature.
281695-4 Features
HE13/HE14 series
281695-4 Applications
There are a lot of TE Connectivity AMP Connectors
281695-4 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
