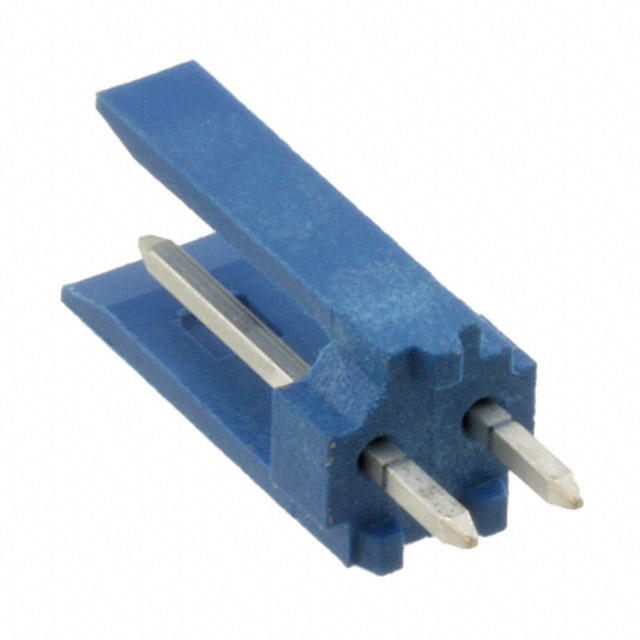

281695-2
Or copy the link below:
- Mfr.Part #
- 281695-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS 2.54MM
- Stock
- 12
- In Stock ：
- 12
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Published :
- 2005
- Insulation Resistance :
- 1GOhm
- Contact Length - Mating :
- 0.276 7.00mm
- DIN Conformance :
- No
- Length :
- 5.08mm
- Material Flammability Rating :
- UL94 V-0
- Mating Post Length :
- 6.75mm
- Connector Type :
- Header
- Insulation Material :
- Thermoplastic
- JESD-609 Code :
- e3
- Packaging :
- Bulk
- Housing Color :
- Blue
- Lead Length :
- 2.9mm
- Contact Resistance :
- 15mOhm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Type :
- Male Pin
- Keyed :
- No
- Termination :
- Solder
- Contact Length - Post :
- 0.114 2.90mm
- Row Spacing :
- 2.54 mm
- Lead Free :
- Lead Free
- Shrouding :
- Shrouded - 2 Wall
- Contact Gender :
- Male
- Number of Rows :
- 1
- Approval Agency :
- CSA
- Overall Contact Length :
- 0.492 12.50mm
- Fastening Type :
- Friction Lock
- RoHS Status :
- RoHS Compliant
- Mixed Contacts :
- No
- Number of Positions :
- 2
- Shrouded End Dimension :
- 1.27 mm
- Mounting Type :
- Through Hole
- Lead Pitch :
- 2.54mm
- Style :
- Board to Cable/Wire
- Pitch - Mating :
- 0.100 2.54mm
- MIL Conformance :
- No
- Current Rating :
- 3A
- Mount :
- Through Hole
- Operating Temperature :
- -40°C~100°C
- Contact Material :
- Phosphor Bronze
- Flammability Rating :
- UL94 V-0
- Depth :
- 5.08mm
- Contact Finish - Mating :
- Tin
- UL Flammability Code :
- 94V-0
- Filter Feature :
- No
- Series :
- HE13/HE14
- Factory Lead Time :
- 16 Weeks
- IEC Conformance :
- No
- Number of Positions Loaded :
- All
- Insulation Height :
- 0.449 11.40mm
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Applications :
- GENERAL PURPOSE
- REACH SVHC :
- Unknown
- Contact Current Rating :
- 3A
- Contact Shape :
- Square
- Orientation :
- Vertical
- Datasheets
- 281695-2
HE13/HE14 Series 1-Row Header Solder Phosphor Bronze Bulk Through Hole Tin Thermoplastic 2-Position Board to Cable/Wire 0.449 11.40mm Height
281695-2 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the HE13/HE14 Series, it belongs to the range of products of that series.This device may be used for the purpose of General Purpose.Through Hole represents the mounting point for the part.-40°C~100°C Operating Temperature is the default operating temperature for the device.
281695-2 Features
HE13/HE14 series
281695-2 Applications
There are a lot of TE Connectivity AMP Connectors
281695-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
