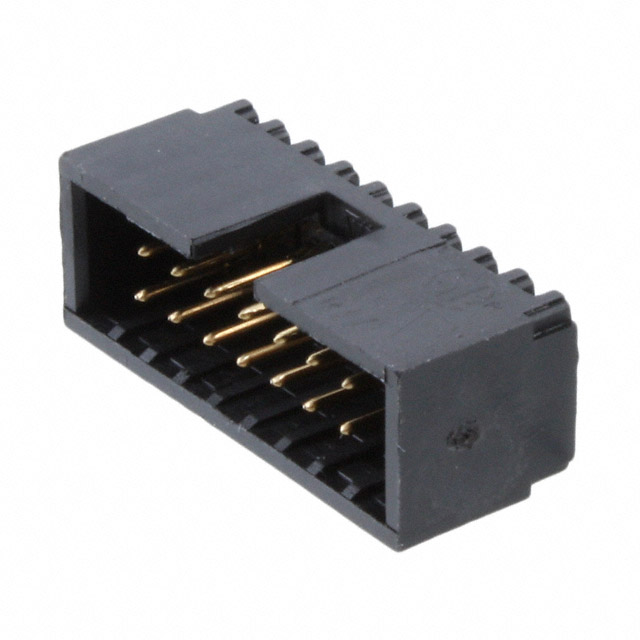

281280-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

RoHS Compliant

DIN Conformance :

No

Connector Type :

Header

Number Of PCB Rows :

2

Reference Standard :

UL, CSA

Operating Temperature (Max) :

105°C

Contact Material :

Brass

Feature :

Keying Slot

Orientation :

RIGHT ANGLE

Fastening Type :

Push-Pull

Pitch - Mating :

0.100 2.54mm

Style :

Board to Cable/Wire

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Dielectric Withstanding Voltage :

1000VAC V

Contact Type :

Male Pin

Radiation Hardening :

No

MIL Conformance :

No

Number of Rows :

2

Depth :

13.5mm

Shrouding :

Shrouded - 4 Wall

HTS Code :

8536.69.40.40

ECCN Code :

EAR99

Insulation Resistance :

1000000000Ohm

Filter Feature :

No

Termination :

Solder

Packaging :

Bulk

UL Flammability Code :

94V-0

Pbfree Code :

yes

Insulation Height :

0.362 9.20mm

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

ELV :

Compliant

Polarization Key :

CENTER

Contact Length - Post :

0.118 3.00mm

Mixed Contacts :

No

Length :

25.4mm

Number of Positions :

14

Number of Conductors :

ONE

Plating Thickness :

30μin

Housing Material :

Thermoplastic

JESD-609 Code :

e3

Row Spacing - Mating :

0.100 (2.54mm)

Reliability :

COMMERCIAL

Contact Finish - Post :

Tin

Flammability Rating :

UL94 V-0

Mounting Type :

Through Hole, Right Angle

Series :

AMP-Latch

Rated Current (Signal) :

1A

Option :

GENERAL PURPOSE

Contact Gender :

Male

PCB Contact Pattern :

RECTANGULAR

PCB Mounting Orientation :

RIGHT ANGLE

Factory Lead Time :

18 Weeks

Housing Color :

Black

Lead Length :

3.1mm

Mating Contact Pitch :

0.1 inch

Operating Temperature (Min) :

-65°C

Published :

2011

IEC Conformance :

No

Contact Finish - Mating :

Gold

Contact Shape :

Square

Number of Positions Loaded :

All

Mount :

Through Hole
