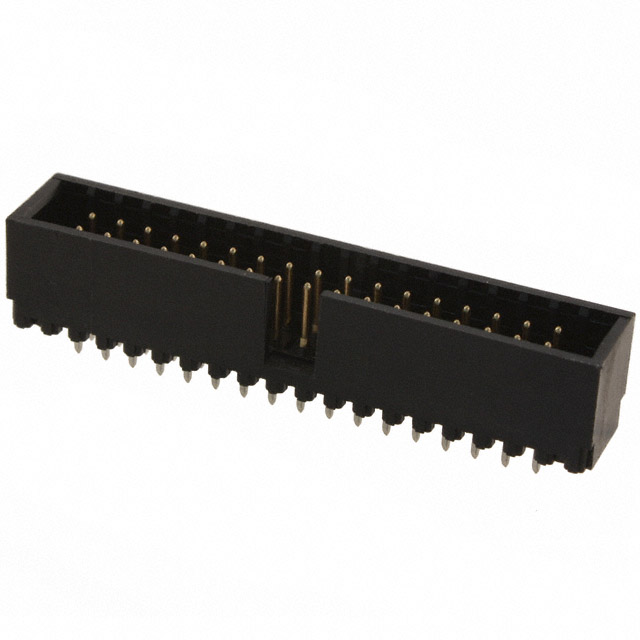

281276-2
Or copy the link below:
- Mfr.Part #
- 281276-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 34POS 2.54MM
- Stock
- 529
- In Stock ：
- 529
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Published :
- 2012
- Number of Conductors :
- ONE
- Depth :
- 10.2mm
- Contact Finish - Mating :
- Gold
- ELV :
- Compliant
- Insulation Resistance :
- 1000000000Ohm
- Contact Gender :
- Male
- Number of Positions Loaded :
- All
- Insulation Color :
- Black
- HTS Code :
- 8536.69.40.40
- Style :
- Board to Cable/Wire
- Contact Finish - Post :
- Tin
- Reliability :
- COMMERCIAL
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Factory Lead Time :
- 18 Weeks
- Dielectric Withstanding Voltage :
- 1000VAC V
- ECCN Code :
- EAR99
- Connector Type :
- Header
- Radiation Hardening :
- No
- Operating Temperature (Min) :
- -65°C
- Rated Current (Signal) :
- 1A
- Pitch - Mating :
- 0.100 2.54mm
- Contact Plating :
- Gold, Tin
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Shrouding :
- Shrouded - 4 Wall
- IEC Conformance :
- No
- Series :
- AMP-Latch
- UL Flammability Code :
- 94V-0
- Contact Type :
- Male Pin
- Polarization Key :
- CENTER
- Fastening Type :
- Push-Pull
- Feature :
- Keying Slot
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Orientation :
- Vertical
- JESD-609 Code :
- e3
- Contact Length - Post :
- 0.118 3.00mm
- Plating Thickness :
- 15μin
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Number Of PCB Rows :
- 2
- Option :
- GENERAL PURPOSE
- Mounting Type :
- Through Hole
- Number of Positions :
- 34
- Filter Feature :
- No
- Contact Shape :
- Square
- Packaging :
- Bulk
- Mixed Contacts :
- No
- RoHS Status :
- RoHS Compliant
- Operating Temperature (Max) :
- 105°C
- Contact Material :
- Brass
- Length :
- 50.8mm
- MIL Conformance :
- No
- Number of Rows :
- 2
- Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.402 10.20mm
- DIN Conformance :
- No
- Housing Material :
- Thermoplastic
- Mating Contact Pitch :
- 0.1 inch
- Reference Standard :
- UL, CSA
- Lead Length :
- 3.05mm
- PCB Contact Pattern :
- RECTANGULAR
- Termination :
- Solder
- Mount :
- Through Hole
- Datasheets
- 281276-2
AMP-Latch Series 2-Row Header Solder Brass Bulk Through Hole Gold Polybutylene Terephthalate (PBT), Glass Filled 34-Position Board to Cable/Wire 0.402 10.20mm Height
281276-2 Overview
It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the AMP-Latch Series of products.Its Keying Slot feature renders it more powerful in many ways.The part is mounted by Through Hole.
281276-2 Features
AMP-Latch series
281276-2 Applications
There are a lot of TE Connectivity AMP Connectors
281276-2 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
