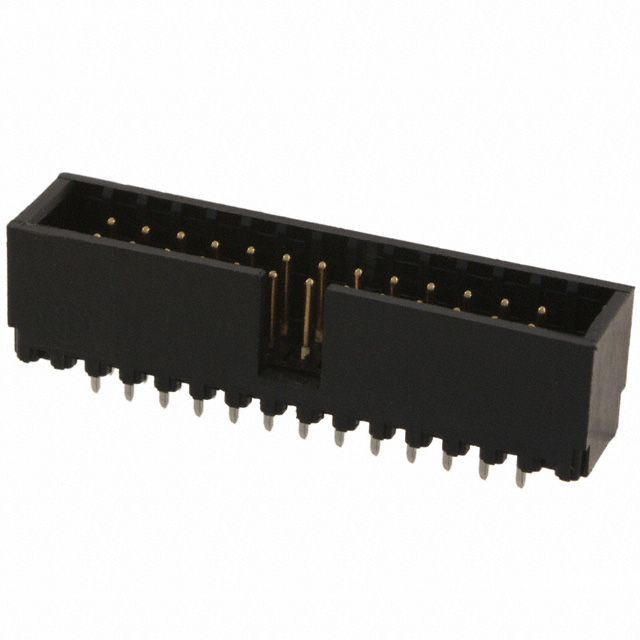

281275-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Length :

40.64mm

JESD-609 Code :

e3

Rated Current (Signal) :

1A

Contact Gender :

Male

Mixed Contacts :

No

Published :

2000

Style :

Board to Cable/Wire

Orientation :

Vertical

Housing Color :

Black

Mount :

Through Hole

Connector Type :

Header

Mating Contact Pitch :

0.1 inch

Contact Type :

Male Pin

Operating Temperature (Max) :

105°C

ECCN Code :

EAR99

Operating Temperature (Min) :

-65°C

Filter Feature :

No

Option :

GENERAL PURPOSE

Housing Material :

Thermoplastic

Polarization Key :

CENTER

Contact Finish - Post :

Tin

DIN Conformance :

No

Number of Conductors :

ONE

Packaging :

Bulk

Depth :

9.2mm

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Number of Rows :

2

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Number of Positions Loaded :

All

Row Spacing - Mating :

0.100 (2.54mm)

Series :

AMP-Latch

Pitch - Mating :

0.100 2.54mm

Radiation Hardening :

No

Feature :

Keying Slot

Number of Positions :

26

Insulation Height :

0.402 10.20mm

Shrouding :

Shrouded - 4 Wall

Contact Length - Post :

0.118 3.00mm

IEC Conformance :

No

Reference Standard :

UL, CSA

Flammability Rating :

UL94 V-0

Fastening Type :

Push-Pull

Lead Length :

3.1mm

PCB Contact Pattern :

RECTANGULAR

Mounting Type :

Through Hole

Contact Finish - Mating :

Gold

Termination :

Solder

ELV :

Compliant

Number Of PCB Rows :

2

Dielectric Withstanding Voltage :

1000VAC V

HTS Code :

8536.69.40.40

Insulation Resistance :

1000000000Ohm

Contact Shape :

Square

Contact Material :

Brass

Plating Thickness :

30μin

MIL Conformance :

No

RoHS Status :

RoHS Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reliability :

COMMERCIAL
