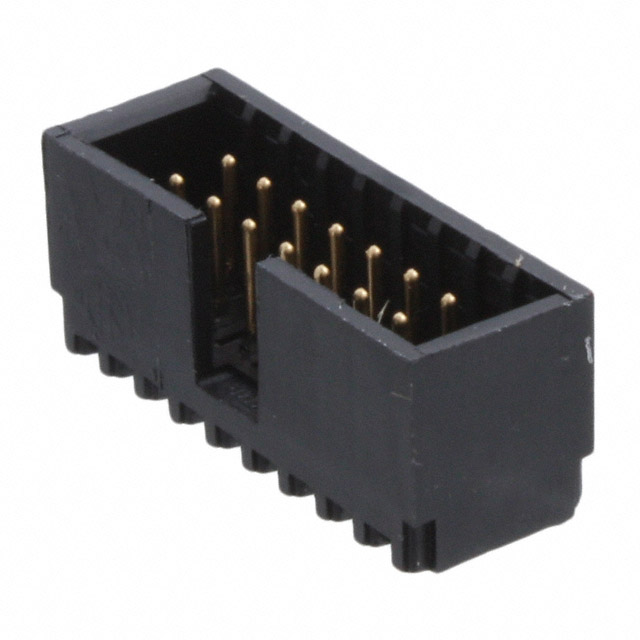

281272-1
Or copy the link below:
- Mfr.Part #
- 281272-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 14POS 2.54MM
- Stock
- 31,148
- In Stock ：
- 31,148
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Plating Thickness :
- 30μin
- Published :
- 2012
- IEC Conformance :
- No
- MIL Conformance :
- No
- Mounting Type :
- Through Hole
- ELV :
- Compliant
- Connector Type :
- Header
- Style :
- Board to Cable/Wire
- Dielectric Withstanding Voltage :
- 1000VAC V
- Contact Gender :
- Male
- Operating Temperature (Max) :
- 105°C
- Contact Length - Post :
- 0.118 3.00mm
- Mount :
- Through Hole
- Feature :
- Keying Slot
- Lead Length :
- 3.1mm
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish - Mating :
- Gold
- Series :
- AMP-Latch
- Option :
- GENERAL PURPOSE
- Mating Contact Pitch :
- 0.1 inch
- Contact Type :
- Male Pin
- Contact Shape :
- Square
- Number of Conductors :
- ONE
- Flammability Rating :
- UL94 V-0
- Packaging :
- Bulk
- Reference Standard :
- UL, CSA
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Number of Rows :
- 2
- Length :
- 25.4mm
- Number of Positions :
- 14
- Rated Current (Signal) :
- 1A
- Radiation Hardening :
- No
- DIN Conformance :
- No
- Termination :
- Solder
- Reliability :
- COMMERCIAL
- Fastening Type :
- Push-Pull
- Insulation Height :
- 0.402 10.20mm
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions Loaded :
- All
- Operating Temperature (Min) :
- -65°C
- Orientation :
- Vertical
- Pitch - Mating :
- 0.100 2.54mm
- Mixed Contacts :
- No
- Filter Feature :
- No
- HTS Code :
- 8536.69.40.40
- Depth :
- 9.2mm
- ECCN Code :
- EAR99
- Housing Material :
- Thermoplastic
- Contact Finish - Post :
- Tin
- Contact Material :
- Brass
- RoHS Status :
- RoHS Compliant
- Number Of PCB Rows :
- 2
- JESD-609 Code :
- e3
- PCB Contact Pattern :
- RECTANGULAR
- Polarization Key :
- CENTER
- Housing Color :
- Black
- Insulation Resistance :
- 1000000000Ohm
- Datasheets
- 281272-1
AMP-Latch Series 2-Row Header Solder Brass Bulk Through Hole Gold Polybutylene Terephthalate (PBT), Glass Filled 14-Position Board to Cable/Wire 0.402 10.20mm Height
281272-1 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the AMP-Latch Series.In many ways, Keying Slot makes it more powerful.By Through Hole, the part is mounted.
281272-1 Features
AMP-Latch series
281272-1 Applications
There are a lot of TE Connectivity AMP Connectors
281272-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
