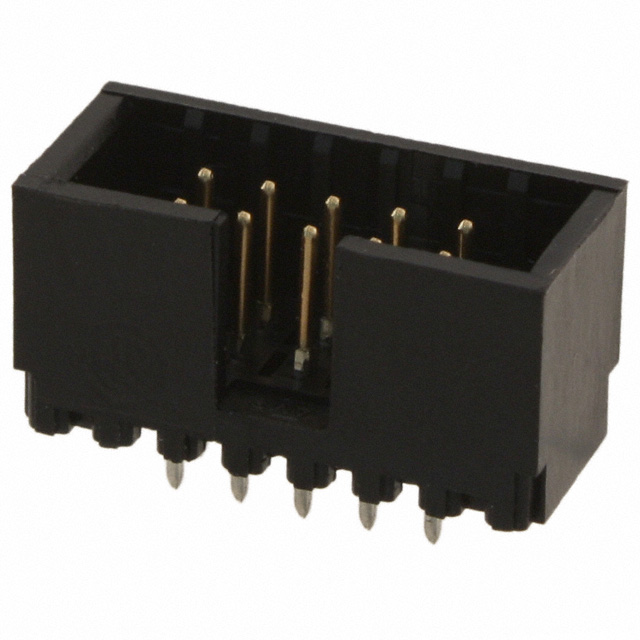

281271-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Housing Color :

Black

Operating Temperature (Min) :

-65°C

Filter Feature :

No

Series :

AMP-Latch

Housing Material :

Thermoplastic

Reliability :

COMMERCIAL

Published :

2008

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

JESD-609 Code :

e3

Pitch - Mating :

0.100 2.54mm

Radiation Hardening :

No

Contact Finish - Post :

Tin

Contact Length - Post :

0.118 3.00mm

Number Of PCB Rows :

2

Rated Current (Signal) :

1A

Number of Poles :

10

Fastening Type :

Push-Pull

HTS Code :

8536.69.40.40

PCB Contact Pattern :

RECTANGULAR

Insulation Height :

0.402 10.20mm

Contact Shape :

Square

MIL Conformance :

No

Lead Pitch :

2.54mm

PCB Mounting Orientation :

Vertical

ECCN Code :

EAR99

Number of Conductors :

ONE

Contact Finish - Mating :

Gold

Lead Free :

Lead Free

Style :

Board to Cable/Wire

Flammability Rating :

UL94 V-0

Option :

GENERAL PURPOSE

Connector Type :

Header

IEC Conformance :

No

Mixed Contacts :

No

Reference Standard :

UL, CSA

Number of Positions Loaded :

All

REACH SVHC :

Unknown

Lead Length :

3.1mm

RoHS Status :

RoHS Compliant

Contact Gender :

Male

Depth :

9.2mm

DIN Conformance :

No

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Packaging :

Bulk

Contact Material :

Brass

Contact Type :

Male Pin

ELV :

Compliant

Plating Thickness :

30μin

Shrouding :

Shrouded - 4 Wall

Row Spacing - Mating :

0.100 (2.54mm)

Number of Rows :

2

Polarization Key :

CENTER

Feature :

Keying Slot

Mount :

Through Hole

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Termination :

Solder

Mating Contact Pitch :

0.1 inch

Length :

20.32mm

Mounting Type :

Through Hole
