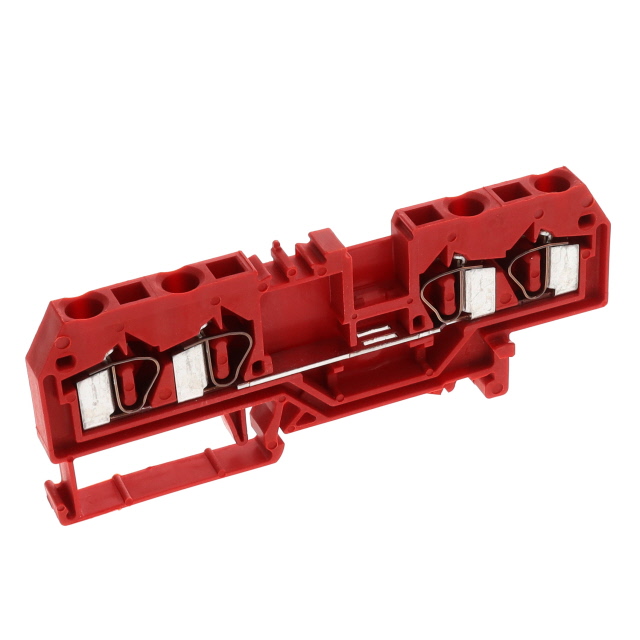

281-663

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Cross section (inflexible) (max.) :

4mm²

Minimum Operating Temperature (°C) :

-60

Features :

-

AWG (min.) :

28

Min. stripping length :

9mm

Stripping Length :

9mm ~ 10mm

Clamp width :

6mm

Number of Levels :

1

AWG max. :

12

Mounting :

DIN Rail

Number of Positions :

4

Number of Rows :

4

Voltage - UL :

-

Disconnect Type :

-

Output Current :

3 A

Mounting Type :

DIN Rail

Wire Gauge or Range - AWG :

12-28 AWG

Stripping length (max.) :

10mm

Height :

29mm

Material Flammability Rating :

UL94 V-0

Color :

Red

EU RoHS :

Compliant

Voltage - IEC :

800V

ECCN (US) :

EAR99

Cross section (flexible) (min.) :

0.08mm²

Output Type :

Single

Connection :

Pull spring

Contamination level :

3

RoHS :

yes

Maximum Operating Temperature (°C) :

105

Nominal current - rounded value :

26A

Rated Power :

91,5 W

Nominal current :

26A

No. of rows :

1

Maximum Current Rating (A) :

26

Approvals :

CSA, UR

Manufacturer part # :

281-663

Note :

-

Type :

Terminal Block

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Content :

50pc(s)

Cross section (inflexible) (min.) :

0.08mm²

Terminal - Width :

6.0mm

Automotive :

No

Number of Circuits :

1

Package :

DIN-Rail mounting

Wire Gauge or Range - mm² :

0.08-2.5mm²

Product Status :

Active

Industrial packaging :

yes

Series :

787

Nominal voltage :

800V

Maximum Voltage Rating :

800V

Fuse Type :

-

Number of Contacts :

4

Termination Style :

Push In, Spring

Cross section (flexible) (max.) :

4mm²

HTS :

8536.90.40.00

Dim :

(W x H) 6 mm x 29 mm

Manufacturer :

Wago

Pins per row :

4

Current - IEC :

26 A

Width :

6mm

PPAP :

No

Packaging :

Box

Housing Color :

Red
