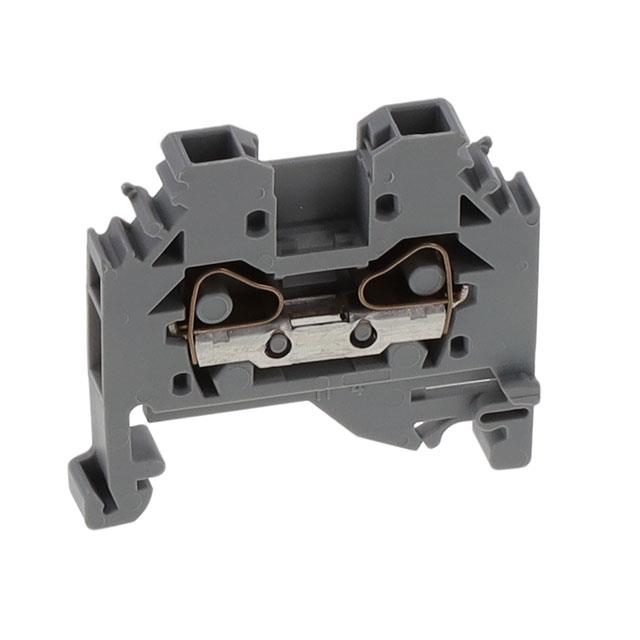

281-101

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Fuse Type :

-

Configuration :

L

Terminal - Width :

6.0mm

Body Orientation :

Straight

Voltage - IEC :

800V

Cross section (flexible) (max.) :

4mm²

Industrial packaging :

yes

Current - IEC :

32 A

Features :

-

Type :

Terminal Block

Color :

Gray

Mounting Style :

Din-Rail

Stripping length (max.) :

10mm

Housing Color :

Gray

Number of Circuits :

1

Voltage - UL :

-

Dim :

(W x H) 6 mm x 32.50 mm

Disconnect Type :

-

Operating Voltage (Max) :

800V

Shell Material :

PA

Height :

32.50mm

Termination Style :

Push In, Spring

Number of Positions/Contacts :

5

Stripping Length :

9mm ~ 10mm

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 4

Current Rating (Max) :

32(A)

Number of Levels :

1

Min. stripping length :

9mm

Number of Contact Rows :

2

Inflammability class of insulation material according to with UL94 :

V0

Product Length (mm) :

6(mm)

Wire Gauge or Range - AWG :

12-28 AWG

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Rated Voltage :

800V

Nominal current - rounded value :

32A

Product Height (mm) :

32.5(mm)

Mounting Type :

DIN Rail

Wire Gauge :

12-28(AWG)

Note :

n/a

Wire Gauge or Range - mm² :

0.08-2.5mm²

Contamination level :

3

Packaging :

Box

Gender :

F

Pins per row :

2

Number of Positions :

2

Manufacturer part # :

281-101

Package :

Bulk

Number of Contacts :

2(POS)

Width :

6mm

Clamp width :

6mm

Rad Hardened :

No

Depth :

32.5

Cross section (flexible) (min.) :

0.08mm²

Material Flammability Rating :

-

Length :

42.5

Approvals :

CSA, UR

Shell Size :

-

Rated Current :

32A

Content :

100pc(s)

Connectable conductor cross section solid-core :

0.08 - 4

Base Product Number :

281

Nominal voltage :

800V

No. of rows :

1

AWG max. :

12

Rated current In :

32

Manufacturer :

Wago

Connection :

Pull spring

AWG (min.) :

28

Series :

WINSTA MIDI special

Cross section (inflexible) (min.) :

0.08mm²

Product Status :

Active

Nominal current :

32A

Product Depth (mm) :

42.5(mm)

RoHS :

yes

Housing Material :

Polyamide 6/6

Connectable conductor cross section multi-wired :

0.08 - 4

Contact Pitch (mm) :

Not Required(mm)

Cross section (inflexible) (max.) :

4mm²
