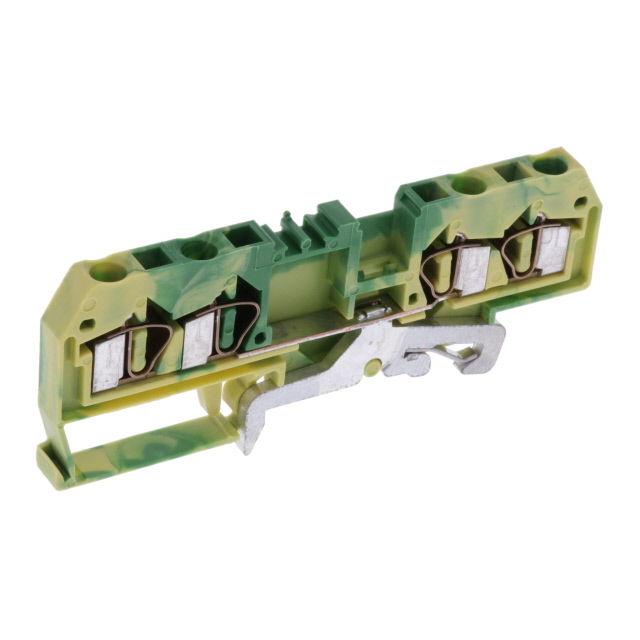

281-657

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

ECCN Code :

EAR99

Height :

29mm

Wire Gauge or Range - AWG :

12-28 AWG

Cross section (flexible) (max.) :

4mm²

Voltage - IEC :

-

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Cross section (inflexible) (max.) :

4mm²

Product Length (mm) :

86

Approvals :

CSA, UR

Number of Rows :

4

Reach Compliance Code :

Compliant

Housing Material :

Polyamide 6/6

Wire Gauge :

12-28(AWG)

AWG max. :

12

Cross section (inflexible) (min.) :

0.08mm²

Number of Contacts :

4

Stripping Length :

9mm ~ 10mm

Termination Method :

Spring Clamp

ECCN (US) :

EAR99

Termination Style :

Push In, Spring

Number of Ways :

4

Contact Pitch (mm) :

Not Required(mm)

Wire Cross Section :

4 mm2

Configuration :

Terre

Minimum Operating Temperature (°C) :

-60

Inflammability class of insulation material according to with UL94 :

V0

Rad Hardened :

No

Connectable conductor cross section solid-core :

0.08 - 4

Disconnect Type :

-

Product Depth (mm) :

6

Pins per row :

4

AWG (min.) :

28

Connectable conductor cross section multi-wired :

0.08 - 4

RoHS :

yes

Stripping length (max.) :

10mm

Number of Contact Rows :

4

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 4

Number of Levels :

1

Voltage - UL :

-

Output Current :

2 A

Mounting Type :

DIN Rail

Wire Size :

28 → 12 AWG

Housing Color :

Green/yellow

HTS :

8536.90.40.00

Product Status :

Active

Terminal - Width :

6.0mm

Number of Positions :

4

HTS Code :

8536.69.40.40

Maximum Current Rating (A) :

24

Maximum Operating Temperature (°C) :

105

Mounting Style :

Din-Rail

Number of Decks :

1

Note :

-

Fastening Method :

SPRING LOADED

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Connection :

Pull spring

Nominal current :

26A

Material Flammability Rating :

-

Output Type :

Single

Manufacturer part # :

281-657

Manufacturer :

Wago

Safety Approval :

UL

Base Product Number :

281

Length :

86

Mounting :

DIN Rail

Content :

50pc(s)

Features :

-

Dim :

(W x H) 6 mm x 29 mm

Product Height (mm) :

29

EU RoHS :

Compliant with Exemption

Cross section (flexible) (min.) :

0.08mm²

Color :

Green, Yellow

Fuse Type :

-

Type :

Ground Terminal Block

Series :

787

PPAP :

No

Depth :

29

Additional Feature :

Cage Clamp

Package :

DIN-Rail mounting

No. of rows :

1

Rated Power :

96 W

Industrial packaging :

yes

Min. stripping length :

9mm

Packaging :

Box

Number of Circuits :

1

Automotive :

No

Width :

6mm

Current Rating (Max) :

24(A)

Clamp width :

6mm

Wire Gauge or Range - mm² :

0.08-2.5mm²

Nominal current - rounded value :

26A
