280620-1

Share

Or copy the link below:

Mfr.Part #
280620-1
Manufacturer
TE Connectivity AMP Connectors
Package / Case
SIL
Datasheet
Download
Description
CONN HEADER R/A 12POS 3.96MM
Stock
48,280
In Stock :
48,280

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Male Pins
Contact Type :
Male Pin
Reliability :
COMMERCIAL
Housing Color :
Green
Insulation Height :
0.346 8.80mm
Mating Post Length :
10mm
Contact Length - Mating :
0.394 10.00mm
Body Breadth :
0.35 inch
Package / Case :
SIL
Max Operating Temperature :
105°C
Factory Lead Time :
33 Weeks
PCB Mounting Orientation :
RIGHT ANGLE
Length :
45.9mm
HTS Code :
8536.69.40.40
Mount :
Through Hole
Lead Pitch :
3.96mm
Material :
Polycarbonate
Number of Positions :
12
RoHS Status :
RoHS Compliant
Shrouded End Dimension :
1.143 mm
ELV :
Compliant
Orientation :
RIGHT ANGLE
Approval Agency :
CSA
Insulation Material :
Polycarbonate, Glass Filled
Contact Length - Post :
0.126 3.20mm
Termination :
Solder
Connector Type :
Header
ECCN Code :
EAR99
Fastening Type :
Detent Lock
Flammability Rating :
UL94 V-0
Keyed :
No
Shrouding :
Shrouded - 2 Wall
Number Of PCB Rows :
1
Contact Shape :
RECTANGULAR
Series :
AMPMODU Mod I
MIL Conformance :
No
Rated Current (Signal) :
5A
Number of Positions Loaded :
All
Insulation Resistance :
5000000000Ohm
Number of Conductors :
ONE
Depth :
17mm
Contact Gender :
Male
Material Flammability Rating :
UL94 V-0
Pitch - Mating :
0.156 3.96mm
Contact Finish - Mating :
Tin
Published :
2008
Pbfree Code :
yes
Number of Rows :
1
REACH SVHC :
Unknown
IEC Conformance :
No
Lead Length :
3.3mm
Mixed Contacts :
No
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Filter Feature :
No
Packaging :
Bulk
Option :
GENERAL PURPOSE
Contact Material :
Brass
Style :
Board to Board or Cable
Mounting Type :
Through Hole, Right Angle
DIN Conformance :
No
Lifecycle Status :
ACTIVE (Last Updated: 7 months ago)
Min Operating Temperature :
-65°C
Datasheets
280620-1
Introducing Headers, Male Pins TE Connectivity AMP Connectors 280620-1 from Chip IC,where excellence meets affordability. This product stands out with its Package / Case:SIL, Mounting Type:Through Hole, Right Angle, 280620-1 pinout, 280620-1 datasheet PDF, 280620-1 amp .Beyond Headers, Male Pins TE Connectivity AMP Connectors 280620-1 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

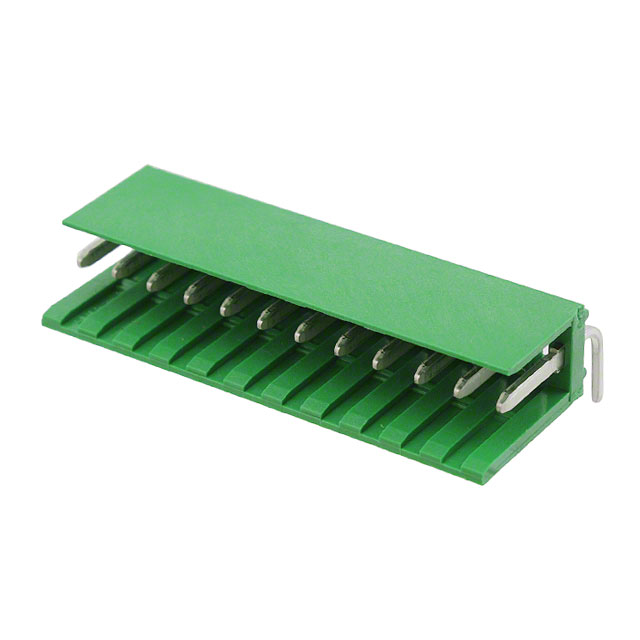

TE Connectivity AMP Connectors 280620-1


AMPMODU Mod I Series 1-Row Header Solder Brass Bulk Through Hole, Right Angle Tin Polycarbonate, Glass Filled 12-Position Board to Board or Cable 0.346 8.80mm Height

280620-1 Overview


The product is packaged in Header.This device is mounted in the Through Hole, Right Angle position.It has been determined that a Bulk case is necessary to package the product.There is a product in the AMPMODU Mod I Series.When the temperature is below 105°C, it is best to use it.A minimum operating temperature of -65°C is required for this device.SIL indicates that the package contains an enclosed device.Part Through Hole is mounted to the part.

280620-1 Features


AMPMODU Mod I series


280620-1 Applications


There are a lot of TE Connectivity AMP Connectors
280620-1 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
Purchase

You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.

RFQ (Request for Quotations)

It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.

Payment Method

For your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.

IMPORTANT NOTICE

You may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.

Shipping Method

Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...

Shipping Cost

Shipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.

The basic freight (for package ≤0.5 KG ) depends on the time zones and countries

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
