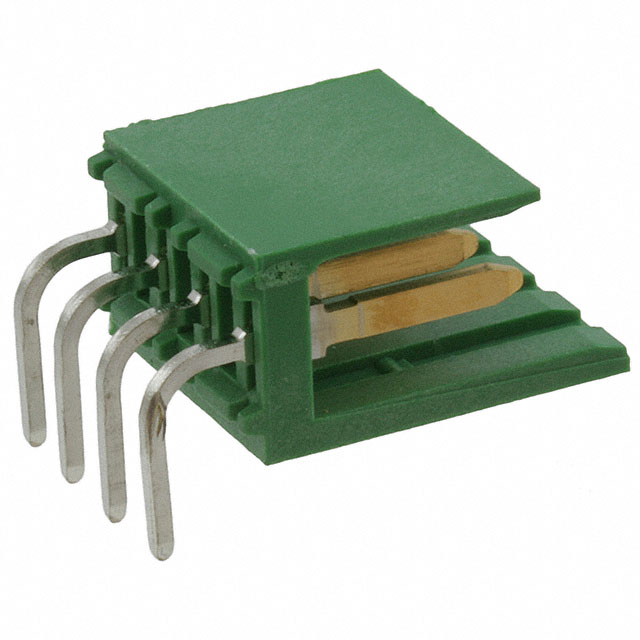

280616-2
Or copy the link below:
- Mfr.Part #
- 280616-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 4POS 3.96MM
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- ECCN Code :
- EAR99
- Contact Material :
- Brass
- Insulation Material :
- Polycarbonate, Glass Filled
- PCB Mounting Orientation :
- RIGHT ANGLE
- MIL Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Conductors :
- ONE
- Contact Finish - Mating :
- Gold
- Insulation Resistance :
- 5000000000Ohm
- Lead Free :
- Lead Free
- Number Of PCB Rows :
- 1
- Mounting Type :
- Through Hole, Right Angle
- Number of Positions Loaded :
- All
- Mount :
- Through Hole
- Option :
- GENERAL PURPOSE
- Approval Agency :
- CSA
- Series :
- AMPMODU Mod I
- Lead Length :
- 3.3mm
- Factory Lead Time :
- 33 Weeks
- Shrouding :
- Shrouded - 2 Wall
- Lead Pitch :
- 3.96mm
- Rated Current (Signal) :
- 5A
- Insulation Height :
- 0.346 8.80mm
- Pbfree Code :
- yes
- Insulation Color :
- Green
- Contact Finish Thickness - Mating :
- 14.5μin 0.37μm
- Connector Type :
- Header
- RoHS Status :
- RoHS Compliant
- Shrouded End Dimension :
- 1.143 mm
- Published :
- 1998
- Keyed :
- No
- Housing Material :
- Polycarbonate
- Min Operating Temperature :
- -65°C
- IEC Conformance :
- No
- Length :
- 15.2mm
- Material Flammability Rating :
- UL94 V-0
- Reliability :
- COMMERCIAL
- Number of Positions :
- 4
- Contact Shape :
- RECTANGULAR
- Termination :
- Solder
- Contact Type :
- Male Pin
- Body Breadth :
- 0.35 inch
- Contact Length - Post :
- 0.126 3.20mm
- Packaging :
- Bulk
- Max Operating Temperature :
- 105°C
- Lifecycle Status :
- ACTIVE (Last Updated: 6 months ago)
- Contact Gender :
- Male
- Flammability Rating :
- UL94 V-0
- Contact Length - Mating :
- 0.394 10.00mm
- Style :
- Board to Board or Cable
- Filter Feature :
- No
- Contact Plating :
- Tin, Gold
- Mating Post Length :
- 10mm
- Depth :
- 20.3mm
- Fastening Type :
- Detent Lock
- Pitch - Mating :
- 0.156 3.96mm
- Mixed Contacts :
- No
- JESD-609 Code :
- e3
- Contact Finish - Post :
- Tin
- Orientation :
- RIGHT ANGLE
- ELV :
- Compliant
- DIN Conformance :
- No
- Number of Rows :
- 1
- Datasheets
- 280616-2
AMPMODU Mod I Series 1-Row Header Solder Brass Bulk Through Hole, Right Angle Gold Polycarbonate, Glass Filled 4-Position Board to Board or Cable 0.346 8.80mm Height
280616-2 Overview
The product is packaged in Header.This device is mounted in the Through Hole, Right Angle position.It has been determined that a Bulk case is necessary to package the product.There is a product in the AMPMODU Mod I Series.When the temperature is below 105°C, it is best to use it.A minimum operating temperature of -65°C is required for this device.Part Through Hole is mounted to the part.
280616-2 Features
AMPMODU Mod I series
280616-2 Applications
There are a lot of TE Connectivity AMP Connectors
280616-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
