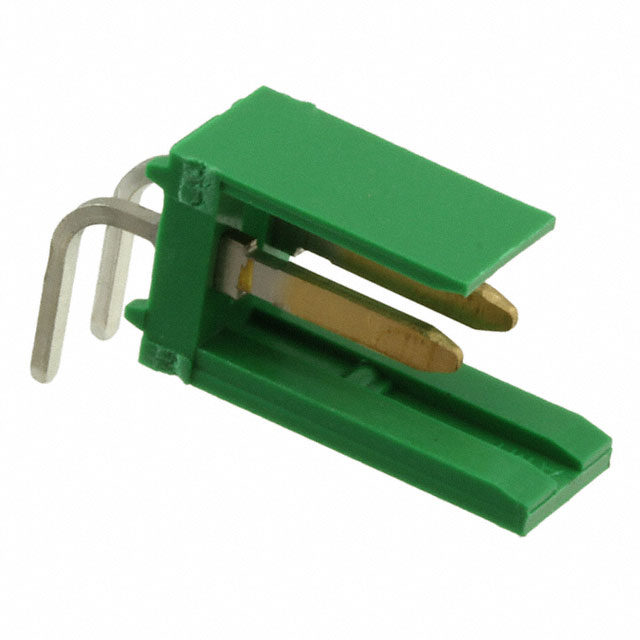

280615-2

Share

Or copy the link below:

Mfr.Part #
280615-2
Manufacturer
TE Connectivity AMP Connectors
Package / Case
SIL
Datasheet
Download
Description
CONN HEADER R/A 2POS 3.96MM
Stock
12,911
In Stock :
12,911

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Male Pins
Contact Plating :
Tin, Gold
Series :
AMPMODU Mod I
ECCN Code :
EAR99
Number of Positions Loaded :
All
Reliability :
COMMERCIAL
Mount :
Through Hole
Contact Finish - Mating :
Gold
Shrouded End Dimension :
1.143 mm
Pbfree Code :
yes
Mating Post Length :
10mm
Mixed Contacts :
No
Contact Finish Thickness - Mating :
14.5μin 0.37μm
Approval Agency :
CSA
Depth :
20.3mm
Min Operating Temperature :
-65°C
IEC Conformance :
No
Contact Resistance :
12mOhm
Rated Current (Signal) :
5A
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Filter Feature :
No
Insulation Resistance :
5GOhm
Contact Finish - Post :
Tin
Insulation Material :
Polycarbonate, Glass Filled
Contact Type :
Male Pin
RoHS Status :
RoHS Compliant
Contact Gender :
Male
Connector Type :
Header
Packaging :
Bulk
MIL Conformance :
No
Number of Conductors :
ONE
Contact Length - Mating :
0.394 10.00mm
Number of Positions :
2
Keyed :
No
Max Operating Temperature :
105°C
HTS Code :
8536.69.40.40
Lifecycle Status :
ACTIVE (Last Updated: 7 months ago)
DIN Conformance :
No
Length :
7.2mm
Package / Case :
SIL
Lead Length :
3.3mm
Insulation Color :
Green
Contact Material :
Brass
Body Breadth :
0.35 inch
Orientation :
RIGHT ANGLE
Published :
2011
Lead Pitch :
3.96mm
Flammability Rating :
UL94 V-0
Contact Shape :
RECTANGULAR
ELV :
Compliant
Contact Length - Post :
0.126 3.20mm
Factory Lead Time :
33 Weeks
Mounting Type :
Through Hole, Right Angle
Pitch - Mating :
0.156 3.96mm
Number Of PCB Rows :
1
Insulation Height :
0.346 8.80mm
Material Flammability Rating :
UL94 V-0
PCB Mounting Orientation :
RIGHT ANGLE
Number of Rows :
1
Termination :
Solder
Style :
Board to Board or Cable
Housing Material :
Polycarbonate
Option :
GENERAL PURPOSE
Fastening Type :
Detent Lock
Shrouding :
Shrouded - 2 Wall
Datasheets
280615-2
Introducing Headers, Male Pins TE Connectivity AMP Connectors 280615-2 from Chip IC,where excellence meets affordability. This product stands out with its Package / Case:SIL, Mounting Type:Through Hole, Right Angle, 280615-2 pinout, 280615-2 datasheet PDF, 280615-2 amp .Beyond Headers, Male Pins TE Connectivity AMP Connectors 280615-2 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 280615-2


AMPMODU Mod I Series 1-Row Header Solder Brass Bulk Through Hole, Right Angle Gold Polycarbonate, Glass Filled 2-Position Board to Board or Cable 0.346 8.80mm Height

280615-2 Overview


The product is packaged in Header.This device is mounted in the Through Hole, Right Angle position.It has been determined that a Bulk case is necessary to package the product.There is a product in the AMPMODU Mod I Series.When the temperature is below 105°C, it is best to use it.A minimum operating temperature of -65°C is required for this device.SIL indicates that the package contains an enclosed device.Part Through Hole is mounted to the part.

280615-2 Features


AMPMODU Mod I series


280615-2 Applications


There are a lot of TE Connectivity AMP Connectors
280615-2 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
