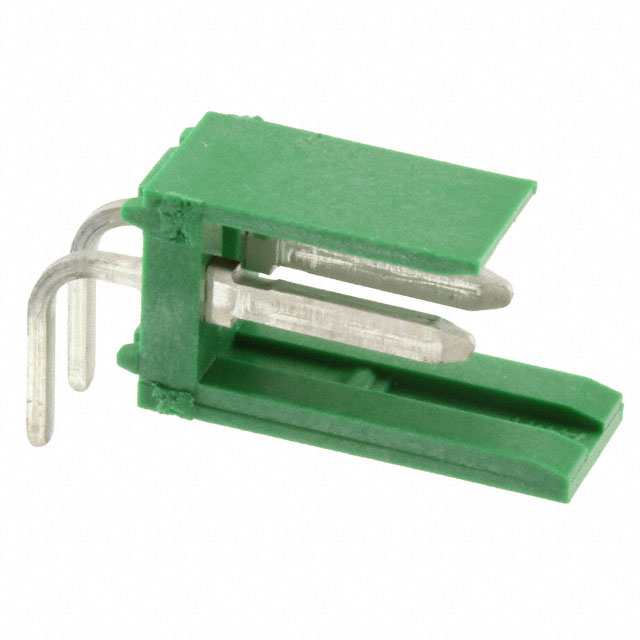

280615-1
Or copy the link below:
- Mfr.Part #
- 280615-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- SIL
- Datasheet
- Download
- Description
- CONN HEADER R/A 2POS 3.96MM
- Stock
- 90
- In Stock ：
- 90
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- ELV :
- Compliant
- Length :
- 7.2mm
- Material Flammability Rating :
- UL94 V-0
- Number of Positions Loaded :
- All
- Factory Lead Time :
- 33 Weeks
- Flammability Rating :
- UL94 V-0
- Option :
- GENERAL PURPOSE
- Termination :
- Solder
- Package / Case :
- SIL
- Body Breadth :
- 0.35 inch
- Lead Pitch :
- 3.96mm
- Depth :
- 20.2mm
- MIL Conformance :
- No
- Insulation Height :
- 0.346 8.80mm
- Mounting Type :
- Through Hole, Right Angle
- Max Operating Temperature :
- 105°C
- Contact Length - Post :
- 0.126 3.20mm
- Current Rating :
- 5A
- Connector Type :
- Header
- Lead Length :
- 3.3mm
- Number Of PCB Rows :
- 1
- Orientation :
- RIGHT ANGLE
- REACH SVHC :
- Unknown
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Rated Current (Signal) :
- 5A
- JESD-609 Code :
- e3
- Insulation Material :
- Polycarbonate, Glass Filled
- Material :
- Polycarbonate
- Pitch - Mating :
- 0.156 3.96mm
- RoHS Status :
- RoHS Compliant
- DIN Conformance :
- No
- Contact Material :
- Brass
- ECCN Code :
- EAR99
- Keyed :
- No
- Housing Color :
- Green
- Contact Length - Mating :
- 0.394 10.00mm
- Shrouding :
- Shrouded - 2 Wall
- Shrouded End Dimension :
- 1.143 mm
- Pbfree Code :
- yes
- Reliability :
- COMMERCIAL
- HTS Code :
- 8536.69.40.40
- Mating Post Length :
- 10mm
- Style :
- Board to Board or Cable
- Contact Type :
- Male Pin
- Series :
- AMPMODU Mod I
- Packaging :
- Bulk
- Contact Shape :
- RECTANGULAR
- Fastening Type :
- Detent Lock
- Contact Resistance :
- 12mOhm
- Min Operating Temperature :
- -65°C
- Contact Finish - Mating :
- Tin
- Lifecycle Status :
- ACTIVE (Last Updated: 7 months ago)
- Insulation Resistance :
- 5GOhm
- Approval Agency :
- CSA
- Published :
- 2008
- IEC Conformance :
- No
- PCB Mounting Orientation :
- RIGHT ANGLE
- Number of Conductors :
- ONE
- Contact Gender :
- Male
- Number of Rows :
- 1
- Number of Positions :
- 2
- Mixed Contacts :
- No
- Mount :
- Through Hole
- Filter Feature :
- No
- Datasheets
- 280615-1
AMPMODU Mod I Series 1-Row Header Solder Brass Bulk Through Hole, Right Angle Tin Polycarbonate, Glass Filled 2-Position Board to Board or Cable 0.346 8.80mm Height
280615-1 Overview
Packaging for this item is Header.There is a mounting type of Through Hole, Right Angle for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the AMPMODU Mod I Series.You should use it when it's below 105°C.A minimum temperature of -65°C is required for the operation of this device.The packaging with the SIL contains a device.Through Hole is used to mount the part.
280615-1 Features
AMPMODU Mod I series
280615-1 Applications
There are a lot of TE Connectivity AMP Connectors
280615-1 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
