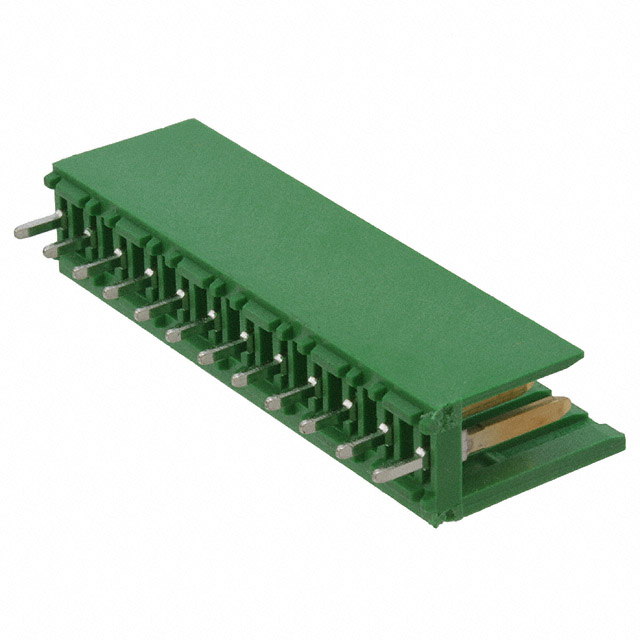

280614-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Mounting Type :

Through Hole

Pbfree Code :

yes

RoHS Status :

RoHS Compliant

Connector Type :

Header

Termination :

Solder

Mixed Contacts :

No

Keyed :

No

Lead Free :

Lead Free

Housing Material :

Polycarbonate

Option :

GENERAL PURPOSE

Reliability :

COMMERCIAL

Packaging :

Bulk

Contact Type :

Male Pin

Shrouding :

Shrouded - 2 Wall

Flammability Rating :

UL94 V-0

Number of Positions Loaded :

All

Body Breadth :

0.35 inch

Insulation Material :

Polycarbonate, Glass Filled

Lifecycle Status :

ACTIVE (Last Updated: 5 months ago)

Contact Finish - Mating :

Gold

Number Of PCB Rows :

1

Contact Gender :

Male

Contact Finish - Post :

Tin

Insulation Resistance :

5000000000Ohm

DIN Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Length :

3.3mm

Length :

45.9mm

Factory Lead Time :

4 Weeks

Orientation :

Vertical

Overall Contact Length :

0.642 16.30mm

Depth :

8.8mm

JESD-609 Code :

e3

Contact Length - Post :

0.130 3.30mm

ELV :

Compliant

Style :

Board to Board or Cable

Mating Post Length :

10mm

Rated Current (Signal) :

5A

Filter Feature :

No

Series :

AMPMODU Mod I

Fastening Type :

Detent Lock

Insulation Color :

Green

Number of Positions :

12

Published :

2001

Min Operating Temperature :

-65°C

HTS Code :

8536.69.40.40

Contact Plating :

Tin, Gold

Number of Conductors :

ONE

Mount :

Through Hole

Contact Length - Mating :

0.394 10.00mm

Approval Agency :

CSA

Contact Material :

Brass

MIL Conformance :

No

Insulation Height :

0.913 23.20mm

Terminal Pitch :

3.96mm

Pitch - Mating :

0.156 3.96mm

Contact Finish Thickness - Mating :

15.0μin 0.38μm

ECCN Code :

EAR99

Max Operating Temperature :

105°C

Contact Shape :

RECTANGULAR

IEC Conformance :

No

Number of Rows :

1

Shrouded End Dimension :

1.143 mm

Material Flammability Rating :

UL94 V-0
