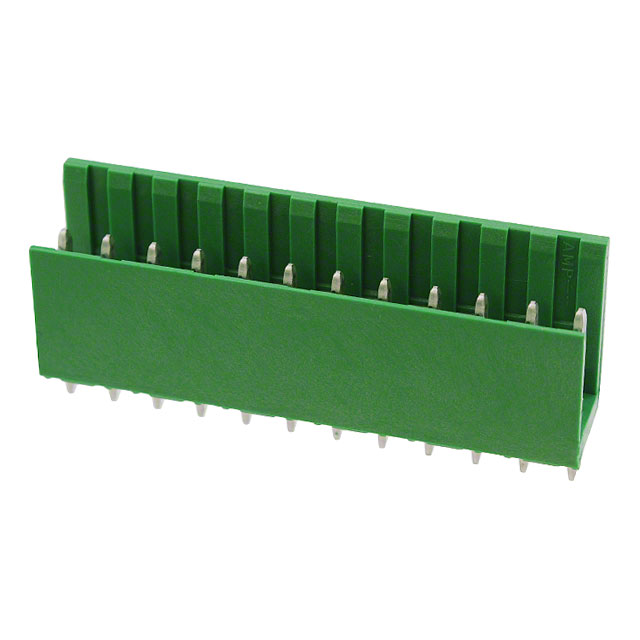

280614-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Contact Type :

Male Pin

Pbfree Code :

yes

Contact Material :

Brass

Number of Positions :

12

IEC Conformance :

No

Number of Conductors :

ONE

Depth :

8.8mm

HTS Code :

8536.69.40.40

Lead Length :

3.3mm

Current Rating :

5A

Body Breadth :

0.35 inch

Option :

GENERAL PURPOSE

Packaging :

Bulk

Max Operating Temperature :

105°C

Length :

45.9mm

Material Flammability Rating :

UL94 V-0

Termination :

Solder

Connector Type :

Header

Material :

Polycarbonate

Number of Positions Loaded :

All

Keyed :

No

Contact Length - Post :

0.130 3.30mm

Reliability :

COMMERCIAL

Pitch - Mating :

0.156 3.96mm

Contact Length - Mating :

0.394 10.00mm

Fastening Type :

Detent Lock

Flammability Rating :

UL94 V-0

Published :

2001

Lifecycle Status :

ACTIVE (Last Updated: 6 months ago)

JESD-609 Code :

e3

Min Operating Temperature :

-65°C

Number Of PCB Rows :

1

RoHS Status :

RoHS Compliant

ELV :

Compliant

MIL Conformance :

No

Package / Case :

SIL

ECCN Code :

EAR99

Factory Lead Time :

33 Weeks

Insulation Height :

0.913 23.20mm

Mount :

Through Hole

Mating Post Length :

10mm

Mounting Type :

Through Hole

Shrouded End Dimension :

1.143 mm

Filter Feature :

No

Orientation :

Vertical

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Resistance :

12mOhm

DIN Conformance :

No

Number of Rows :

1

Insulation Material :

Polycarbonate, Glass Filled

Insulation Resistance :

5GOhm

Housing Color :

Green

Rated Current (Signal) :

5A

Lead Pitch :

3.96mm

Shrouding :

Shrouded - 2 Wall

REACH SVHC :

Unknown

Series :

AMPMODU Mod I

Overall Contact Length :

0.642 16.30mm

Mixed Contacts :

No

Contact Finish - Mating :

Tin

Style :

Board to Board or Cable

Contact Gender :

Male

Contact Shape :

RECTANGULAR

Approval Agency :

CSA
