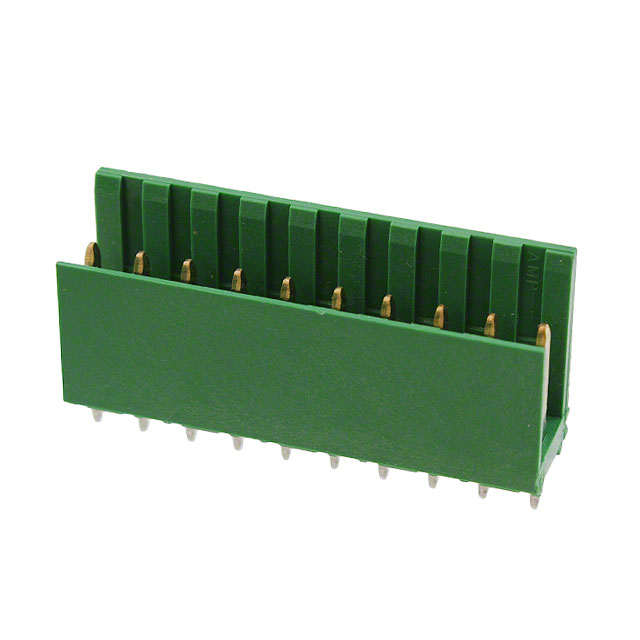

280613-2
Or copy the link below:
- Mfr.Part #
- 280613-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- SIL
- Datasheet
- Download
- Description
- CONN HEADER VERT 10POS 3.96MM
- Stock
- 3
- In Stock ：
- 3
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Mixed Contacts :
- No
- Max Operating Temperature :
- 105°C
- Contact Type :
- Male Pin
- Number of Conductors :
- ONE
- Series :
- AMPMODU Mod I
- Lifecycle Status :
- ACTIVE (Last Updated: 6 months ago)
- Orientation :
- Vertical
- Mounting Type :
- Through Hole
- Connector Type :
- Header
- Housing Material :
- Polycarbonate
- IEC Conformance :
- No
- Insulation Height :
- 0.913 23.20mm
- Mating Post Length :
- 10mm
- Keyed :
- No
- Contact Finish - Mating :
- Gold
- Body Breadth :
- 0.35 inch
- Packaging :
- Bulk
- RoHS Status :
- RoHS Compliant
- Contact Length - Post :
- 0.130 3.30mm
- Overall Contact Length :
- 0.642 16.30mm
- Termination :
- Solder
- Min Operating Temperature :
- -65°C
- JESD-609 Code :
- e3
- MIL Conformance :
- No
- REACH SVHC :
- No SVHC
- Number of Positions Loaded :
- All
- Contact Shape :
- RECTANGULAR
- Number of Positions :
- 10
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Body Depth :
- 0.665 inch
- Pitch - Mating :
- 0.156 3.96mm
- Published :
- 2001
- Insulation Material :
- Polycarbonate, Glass Filled
- ELV :
- Compliant
- Contact Length - Mating :
- 0.394 10.00mm
- Factory Lead Time :
- 4 Weeks
- Contact Plating :
- Gold, Tin
- Fastening Type :
- Detent Lock
- Number Of PCB Rows :
- 1
- Lead Free :
- Lead Free
- ECCN Code :
- EAR99
- Shrouded End Dimension :
- 1.143 mm
- Contact Material :
- Brass
- Lead Pitch :
- 3.96mm
- Approval Agency :
- CSA
- Reliability :
- COMMERCIAL
- Insulation Resistance :
- 5GOhm
- Rated Current (Signal) :
- 5A
- Style :
- Board to Board or Cable
- Option :
- GENERAL PURPOSE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Package / Case :
- SIL
- Material Flammability Rating :
- UL94 V-0
- Contact Gender :
- Male
- Flammability Rating :
- UL94 V-0
- Lead Length :
- 3.3mm
- Mount :
- Through Hole
- Insulation Color :
- Green
- Shrouding :
- Shrouded - 2 Wall
- Pbfree Code :
- yes
- DIN Conformance :
- No
- HTS Code :
- 8536.69.40.40
- Contact Finish - Post :
- Tin
- Filter Feature :
- No
- Contact Resistance :
- 12mOhm
- Number of Rows :
- 1
- Datasheets
- 280613-2
AMPMODU Mod I Series 1-Row Header Solder Brass Bulk Through Hole Gold Polycarbonate, Glass Filled 10-Position Board to Board or Cable 0.913 23.20mm Height
280613-2 Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the AMPMODU Mod I Series.You should use it when it's below 105°C.A minimum temperature of -65°C is required for the operation of this device.The packaging with the SIL contains a device.Through Hole is used to mount the part.
280613-2 Features
AMPMODU Mod I series
280613-2 Applications
There are a lot of TE Connectivity AMP Connectors
280613-2 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
