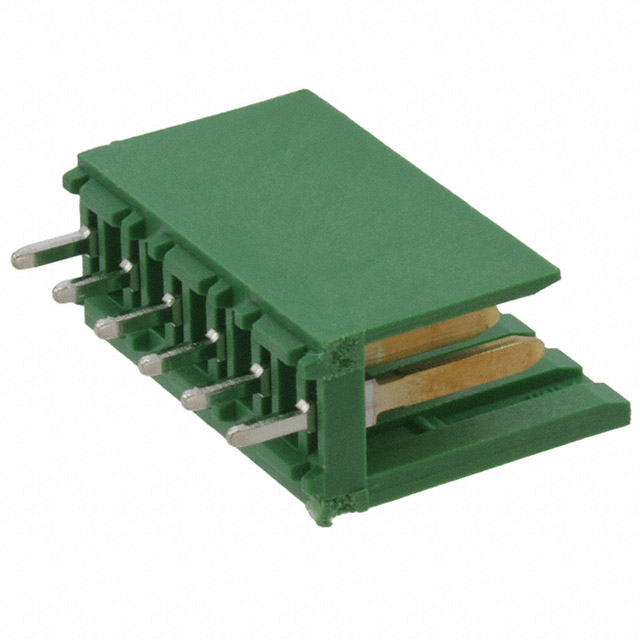

280611-2

Share

Or copy the link below:

Mfr.Part #
280611-2
Manufacturer
TE Connectivity AMP Connectors
Package / Case
SIL
Datasheet
Download
Description
CONN HEADER VERT 6POS 3.96MM
Stock
549
In Stock :
549

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Male Pins
Mounting Type :
Through Hole
REACH SVHC :
No SVHC
Body Breadth :
0.35 inch
Termination :
Solder
Pitch - Mating :
0.156 3.96mm
Number of Positions :
6
Factory Lead Time :
33 Weeks
Number of Rows :
1
Depth :
8.8mm
Fastening Type :
Detent Lock
Overall Contact Length :
0.642 16.30mm
Rated Current (Signal) :
5A
Mixed Contacts :
No
Package / Case :
SIL
Contact Gender :
Male
Lifecycle Status :
ACTIVE (Last Updated: 6 months ago)
Reliability :
COMMERCIAL
Number of Conductors :
ONE
Pbfree Code :
yes
Length :
22.1mm
Number of Positions Loaded :
All
Number Of PCB Rows :
1
Style :
Board to Board or Cable
ELV :
Compliant
Shrouded End Dimension :
1.143 mm
Approval Agency :
CSA
Contact Type :
Male Pin
Lead Length :
3.3mm
Option :
GENERAL PURPOSE
Connector Type :
Header
Contact Plating :
Gold, Tin
Packaging :
Bulk
Keyed :
No
Lead Pitch :
3.96mm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Max Operating Temperature :
105°C
Lead Free :
Lead Free
Contact Finish - Mating :
Gold
Published :
2001
Insulation Material :
Polycarbonate, Glass Filled
Housing Material :
Polycarbonate
Contact Length - Mating :
0.394 10.00mm
Insulation Resistance :
5GOhm
RoHS Status :
RoHS Compliant
ECCN Code :
EAR99
Series :
AMPMODU Mod I
Min Operating Temperature :
-65°C
Mating Post Length :
10mm
Filter Feature :
No
Mount :
Through Hole
Material Flammability Rating :
UL94 V-0
MIL Conformance :
No
Shrouding :
Shrouded - 2 Wall
Flammability Rating :
UL94 V-0
Contact Shape :
RECTANGULAR
Contact Finish Thickness - Mating :
15.0μin 0.38μm
Contact Finish - Post :
Tin
Insulation Height :
0.913 23.20mm
Insulation Color :
Green
DIN Conformance :
No
Contact Resistance :
12mOhm
IEC Conformance :
No
JESD-609 Code :
e3
Orientation :
Vertical
Contact Material :
Brass
Contact Length - Post :
0.130 3.30mm
Datasheets
280611-2
Introducing Headers, Male Pins TE Connectivity AMP Connectors 280611-2 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Package / Case:SIL, 280611-2 pinout, 280611-2 datasheet PDF, 280611-2 amp .Beyond Headers, Male Pins TE Connectivity AMP Connectors 280611-2 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 280611-2


AMPMODU Mod I Series 1-Row Header Solder Brass Bulk Through Hole Gold Polycarbonate, Glass Filled 6-Position Board to Board or Cable 0.913 23.20mm Height

280611-2 Overview


This product is packaged in a Header carton.Through Hole is the mounting type for the device.The product is packaged in a Bulk case.It's part of the AMPMODU Mod I Series.Ideally, it should be used when the temperature is below 105°C.Temperature must be -65°C to operate this device.Packages with the SIL contain a device.Mounting of the part is based on Through Hole.

280611-2 Features


AMPMODU Mod I series


280611-2 Applications


There are a lot of TE Connectivity AMP Connectors
280611-2 Rectangular Connectors applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
