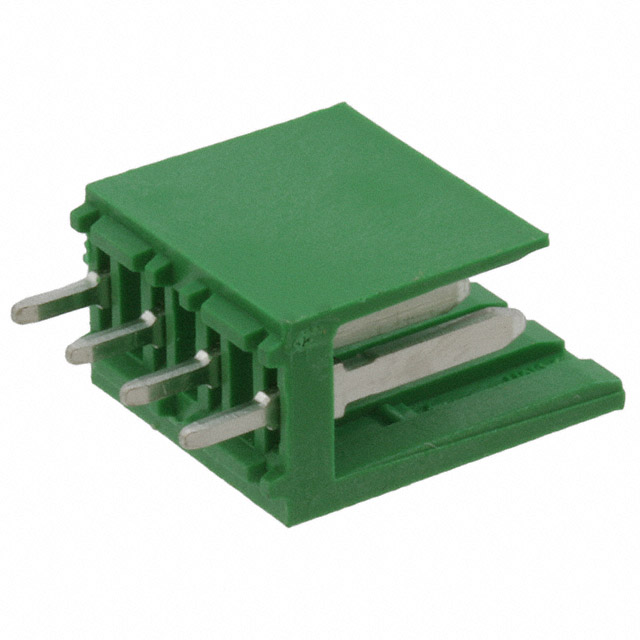

280610-1
Or copy the link below:
- Mfr.Part #
- 280610-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- SIL
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 3.96MM
- Stock
- 3,166
- In Stock ：
- 3,166
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Factory Lead Time :
- 4 Weeks
- Number of Rows :
- 1
- Number of Positions :
- 4
- Orientation :
- Vertical
- Current Rating :
- 5A
- JESD-609 Code :
- e3
- Lead Free :
- Lead Free
- Filter Feature :
- No
- Contact Resistance :
- 12mOhm
- Reliability :
- COMMERCIAL
- Pbfree Code :
- yes
- Length :
- 14.2mm
- IEC Conformance :
- No
- Rated Current (Signal) :
- 5A
- Shrouded End Dimension :
- 1.143 mm
- Pitch - Mating :
- 0.156 3.96mm
- Number Of PCB Rows :
- 1
- Keyed :
- No
- Published :
- 2001
- Lead Pitch :
- 3.96mm
- Contact Material :
- Brass
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Color :
- Green
- ELV :
- Compliant
- Fastening Type :
- Detent Lock
- Contact Length - Post :
- 0.130 3.30mm
- Mount :
- Through Hole
- Packaging :
- Bulk
- MIL Conformance :
- No
- Insulation Resistance :
- 5GOhm
- Contact Gender :
- Male
- Material :
- Polycarbonate
- Max Operating Temperature :
- 105°C
- Mounting Type :
- Through Hole
- Contact Finish - Mating :
- Tin
- Series :
- AMPMODU Mod I
- DIN Conformance :
- No
- Connector Type :
- Header
- Lead Length :
- 3.3mm
- Overall Contact Length :
- 0.642 16.30mm
- ECCN Code :
- EAR99
- Body Breadth :
- 0.35 inch
- Material Flammability Rating :
- UL94 V-0
- Insulation Material :
- Polycarbonate, Glass Filled
- Option :
- GENERAL PURPOSE
- Min Operating Temperature :
- -65°C
- REACH SVHC :
- No SVHC
- Termination :
- Solder
- Insulation Height :
- 0.913 23.20mm
- RoHS Status :
- RoHS Compliant
- Package / Case :
- SIL
- Mixed Contacts :
- No
- Contact Type :
- Male Pin
- Mating Post Length :
- 10mm
- Shrouding :
- Shrouded - 2 Wall
- Style :
- Board to Board or Cable
- Number of Positions Loaded :
- All
- Number of Conductors :
- ONE
- Flammability Rating :
- UL94 V-0
- Contact Shape :
- RECTANGULAR
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Contact Length - Mating :
- 0.394 10.00mm
- Depth :
- 8.8mm
- Approval Agency :
- CSA
- Datasheets
- 280610-1
AMPMODU Mod I Series 1-Row Header Solder Brass Bulk Through Hole Tin Polycarbonate, Glass Filled 4-Position Board to Board or Cable 0.913 23.20mm Height
280610-1 Overview
It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the AMPMODU Mod I Series of products.It's best to use it when the temperature is below 105°C.This device must operate at a minimum temperature of -65°C.In the packaging with the SIL, there is a device enclosed in the package.The part is mounted by Through Hole.
280610-1 Features
AMPMODU Mod I series
280610-1 Applications
There are a lot of TE Connectivity AMP Connectors
280610-1 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
