280523-1
Or copy the link below:
- Mfr.Part #
- 280523-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 12POS 2.54MM
- Stock
- 3,356
- In Stock ：
- 3,356
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number of Conductors :
- ONE
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Option :
- GENERAL PURPOSE
- Mixed Contacts :
- No
- Reliability :
- COMMERCIAL
- Flammability Rating :
- UL94 V-0
- Depth :
- 14.9mm
- Voltage - Rated :
- 40V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 12
- Mating Post Length :
- 6.604mm
- Pbfree Code :
- yes
- Number of Positions Loaded :
- All
- Fastening Type :
- Detent Lock
- Contact Finish Thickness - Mating :
- 118.1μin 3.00μm
- Insulation Material :
- Thermoplastic
- PCB Mounting Orientation :
- RIGHT ANGLE
- Orientation :
- RIGHT ANGLE
- Housing Color :
- Black
- Length :
- 33.1mm
- Contact Type :
- Male Pin
- Number Of PCB Rows :
- 1
- PCB Contact Pattern :
- RECTANGULAR
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Voltage - Rated AC :
- 250V
- Factory Lead Time :
- 33 Weeks
- Shrouded End Dimension :
- 1.65 mm
- Insulation Height :
- 0.197 5.00mm
- UL Flammability Code :
- 94V-0
- Packaging :
- Bulk
- Operating Temperature :
- -40°C~80°C
- Insulation Resistance :
- 5000000000Ohm
- Filter Feature :
- No
- MIL Conformance :
- No
- Contact Length - Post :
- 0.138 3.50mm
- Current Rating :
- 3A
- Gender :
- Male
- Connector Type :
- Header
- High Temperature Housing :
- No
- Contact Material :
- Brass
- ELV :
- Compliant
- Approval Agency :
- CSA
- Lead Length :
- 3.5052mm
- Contact Finish - Mating :
- Tin
- Contact Shape :
- Square
- Mounting Type :
- Through Hole, Right Angle
- Number of Poles :
- 12
- Material Flammability Rating :
- UL94 V-0
- Style :
- Board to Board or Cable
- IEC Conformance :
- No
- Contact Current Rating :
- 3A
- Working Voltage :
- 250V
- Termination :
- Solder
- Pitch - Mating :
- 0.100 2.54mm
- Row Spacing :
- 2.54 mm
- Lead Pitch :
- 2.54mm
- Contact Length - Mating :
- 0.260 6.60mm
- Plating Thickness :
- 3.5μm
- Shrouding :
- Shrouded - 3 Wall
- Number of Rows :
- 1
- Published :
- 2008
- Series :
- AMPMODU Mod II
- Mount :
- Through Hole
- DIN Conformance :
- No
- Datasheets
- 280523-1

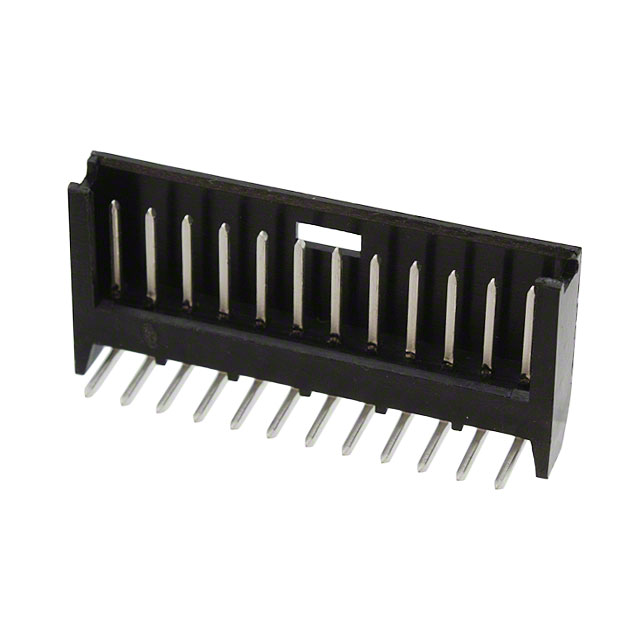

AMPMODU Mod II Series 1-Row Header Solder Brass Bulk Through Hole, Right Angle Tin Thermoplastic 12-Position Board to Board or Cable 0.197 5.00mm Height
280523-1 Overview
Packaging is Header.Through Hole, Right Angle is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the AMPMODU Mod II Series, it can be found in this category.In this case, Through Hole mounts the part.The device is operating at -40°C~80°C Operating Temperature.
