280522-2
Or copy the link below:
- Mfr.Part #
- 280522-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 24POS 2.54MM
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Termination :
- Solder
- Contact Shape :
- Square
- Insulation Color :
- Black
- PCB Mounting Orientation :
- RIGHT ANGLE
- Current Rating :
- 3A
- Option :
- GENERAL PURPOSE
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 24
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- UL Flammability Code :
- 94V-0
- Depth :
- 17.4mm
- Material Flammability Rating :
- UL94 V-0
- Mixed Contacts :
- No
- Mount :
- Through Hole
- Plating Thickness :
- 2.5μm
- Number of Conductors :
- ONE
- Insulation Height :
- 0.276 7.00mm
- Contact Finish - Mating :
- Gold
- Number Of PCB Rows :
- 2
- Mating Post Length :
- 6.604mm
- Mounting Type :
- Through Hole, Right Angle
- Style :
- Board to Board or Cable
- Connector Type :
- Header
- Rated Current (Signal) :
- 3A
- Pitch - Mating :
- 0.100 2.54mm
- Reliability :
- COMMERCIAL
- Lead Pitch :
- 2.54mm
- Contact Finish - Post :
- Tin
- Lead Length :
- 3.5052mm
- Pbfree Code :
- yes
- Filter Feature :
- No
- Orientation :
- RIGHT ANGLE
- ECCN Code :
- EAR99
- Voltage - Rated :
- 40V
- Approval Agency :
- CSA
- Shrouding :
- Shrouded - 3 Wall
- PCB Contact Pattern :
- RECTANGULAR
- Operating Temperature :
- -40°C~80°C
- Contact Finish Thickness - Post :
- 98.4μin 2.50μm
- Number of Positions Loaded :
- All
- Factory Lead Time :
- 33 Weeks
- JESD-609 Code :
- e3
- DIN Conformance :
- No
- Length :
- 33.1mm
- Published :
- 1997
- Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Dielectric Withstanding Voltage :
- 1050VAC V
- Mating Contact Pitch :
- 0.1 inch
- Contact Plating :
- Gold, Tin
- Contact Type :
- Male Pin
- Contact Length - Post :
- 0.138 3.50mm
- HTS Code :
- 8536.69.40.40
- Packaging :
- Bulk
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Material :
- Brass
- IEC Conformance :
- No
- Contact Gender :
- Male
- Series :
- AMPMODU Mod II
- High Temperature Housing :
- No
- Number of Rows :
- 2
- Insulation Material :
- Thermoplastic
- Fastening Type :
- Detent Lock
- Shrouded End Dimension :
- 1.65 mm
- MIL Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Resistance :
- 5000000000Ohm
- Contact Length - Mating :
- 0.260 6.60mm
- Datasheets
- 280522-2

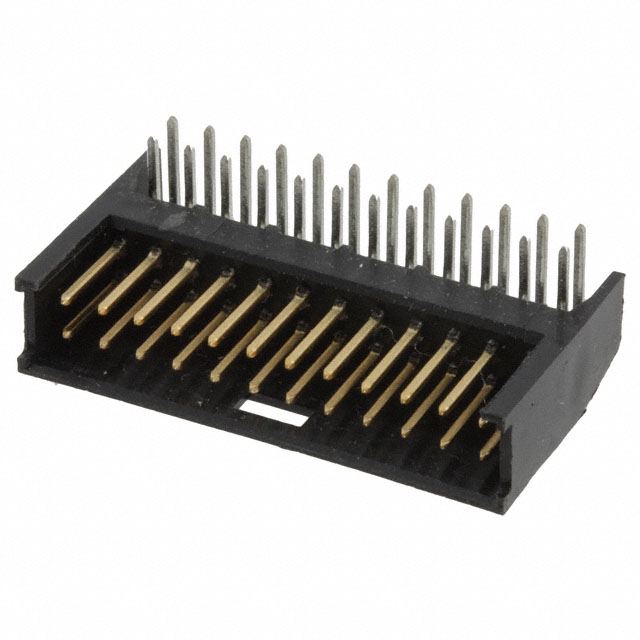

AMPMODU Mod II Series 2-Row Header Solder Brass Bulk Through Hole, Right Angle Gold Thermoplastic 24-Position Board to Board or Cable 0.276 7.00mm Height
280522-2 Overview
This product is packaged in a Header box.Through Hole, Right Angle indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the AMPMODU Mod II Series.By Through Hole, the part is mounted.Operating temperature is set to -40°C~80°C.
280522-2 Features
AMPMODU Mod II series
280522-2 Applications
There are a lot of TE Connectivity AMP Connectors
280522-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
